RTHZ56 Bogie Structural Design And Key Component Configuration

RTHZ56 Bogie Structural Design And Key Component Configuration

35t railway bogie

7.8t railway bogie

35t bogie in train

Place of Origin:

China

Brand Name:

Railteco

Certification:

AAR

Model Number:

RTHZ56

CONTACT US
Request A Quote
RTHZ56 Bogie Structural Design And Key Component Configuration RTHZ56 Bogie Structural Design And Key Component Configuration RTHZ56 Bogie Structural Design And Key Component Configuration
Product Details
Gauge:
1435mm
Axle Load:
35t
Tare Weight:
7.8t
Wheel Base:
1550mm
Running Speed（Max）:
35km/h
Diameter Of Wheels:
Ф650mm
Highlight:

35t railway bogie

,

7.8t railway bogie

,

35t bogie in train

Payment & Shipping Terms
Minimum Order Quantity
1unit
Price
13000-20000usd/unit
Packaging Details
Railteco Standard Export Packing
Delivery Time
3-6months
Payment Terms
L/C,T/T
Supply Ability
1000units/year
RELATED PRODUCTS
Good price RTHZ56 Bogie Structural Design And Key Component Configuration online

RTHZ56 Bogie Structural Design And Key Component Configuration

Get Best Price
Good price RTHZ29 Bogie Is Mainly Constructed With A Welded Frame Structure online

RTHZ29 Bogie Is Mainly Constructed With A Welded Frame Structure

Get Best Price
Good price RTHZ15 Bogie Is Mainly Applied To Railway Engineering Vehicles Used For Rail Transportation online

RTHZ15 Bogie Is Mainly Applied To Railway Engineering Vehicles Used For Rail Transportation

Get Best Price
Good price The RTHZ56 Bogie Adopts A Welded Frame Structure online

The RTHZ56 Bogie Adopts A Welded Frame Structure

Get Best Price
CONTACT US
Contact Now
Product Description
RTHZ56 Bogie Structural Design And Key Component Configuration
Product Overview

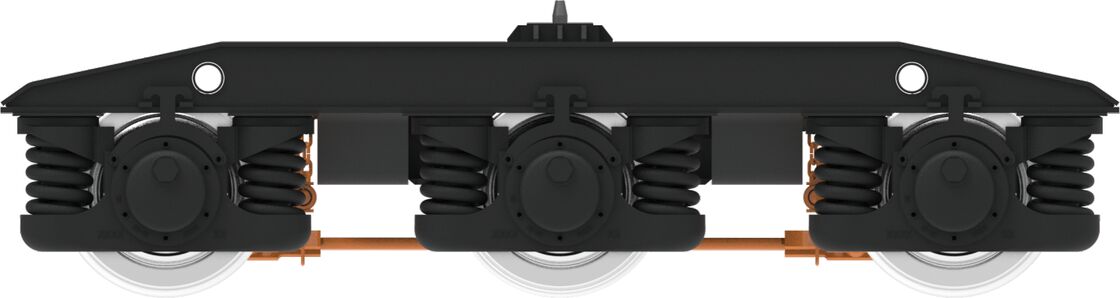

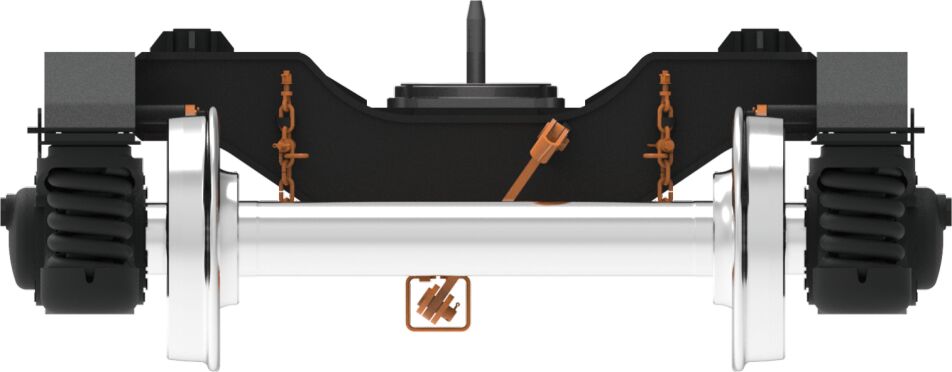

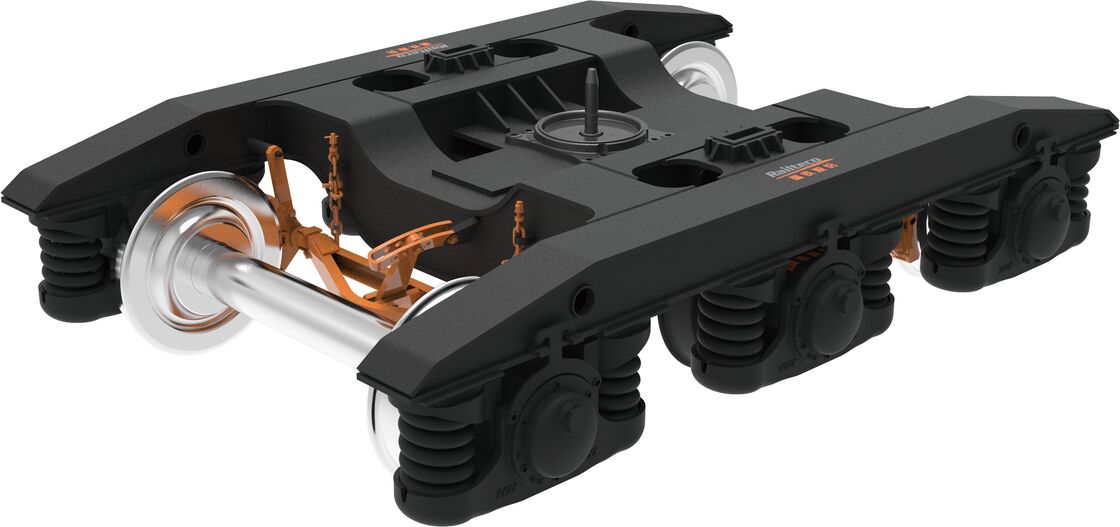

The bogie primarily employs a welded frame construction. The frame assembly comprises two side beams, two cross beams, and one center beam. Two rigid side bearings are installed on either side of the frame. The wheelset adopts monoblock silicon steel wheels fitted with self-aligning roller bearings, while the suspension system features three-stage spring stiffness characteristics. The interface components connecting the bogie to the carbody are manufactured from non-metallic materials including nylon and rubber.

Reference Photo
RTHZ56 Bogie Structural Design And Key Component Configuration 0
Q&A
  • What type of frame structure does the bogie adopt?
    The bogie mainly adopts a welded frame structure composed of two side beams, two cross beams, and one center beam.
  • What materials and bearing types are used for the wheels?
    The wheels are monoblock silicon steel wheels equipped with self-aligning roller bearings.
  • What materials are used for the connecting parts between the bogie and the vehicle body?
    The connecting components are made of non-metallic materials such as nylon and rubber.
