The RTHZ56 Bogie Adopts A Welded Frame Structure

welded frame railway flat wagon

RTHZ56 bogie railway wagon

durable railway flat wagon

Place of Origin:

China

Brand Name:

Railteco

Certification:

AAR

Model Number:

RTHZ56

Request A Quote

Product Details

Maximumspeed:

35km/h

Productname:

RTHZ56 Bogie

Gauge:

1435mm

Axle Load:

35t

Tare Weight:

7.8t

Wheel Base:

1550mm

Highlight:

welded frame railway flat wagon

RTHZ56 bogie railway wagon

durable railway flat wagon

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

13000-20000usd/unit

Packaging Details

Railteco standard export packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

RTHZ56 Bogie Structural Design And Key Component Configuration

Get Best Price

RTHZ29 Bogie Is Mainly Constructed With A Welded Frame Structure

Get Best Price

RTHZ15 Bogie Is Mainly Applied To Railway Engineering Vehicles Used For Rail Transportation

Get Best Price

The RTHZ56 Bogie Adopts A Welded Frame Structure

Get Best Price

Contact Now

Product Description

The RTHZ56 Bogie Adopts A Welded Frame Structure

Product Overview

The bogie is mainly constructed with a welded frame structure. The frame assembly comprises two side beams, two cross beams, and one middle beam.

Key Characteristics

Two rigid side bearings are arranged on both sides of the frame.
The wheels are integral silicon steel wheels fitted with self-aligning roller bearings.
The suspension system employs a three-stage spring stiffness design.
The interfaces and connection parts between the bogie and the car body are manufactured using non-metallic materials, including nylon and rubber.

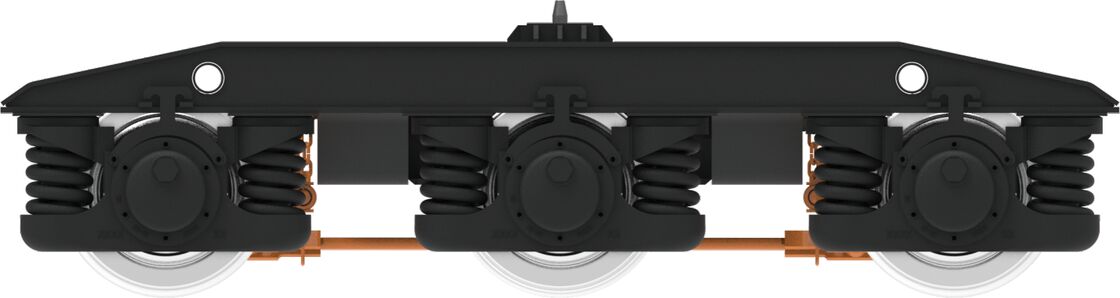

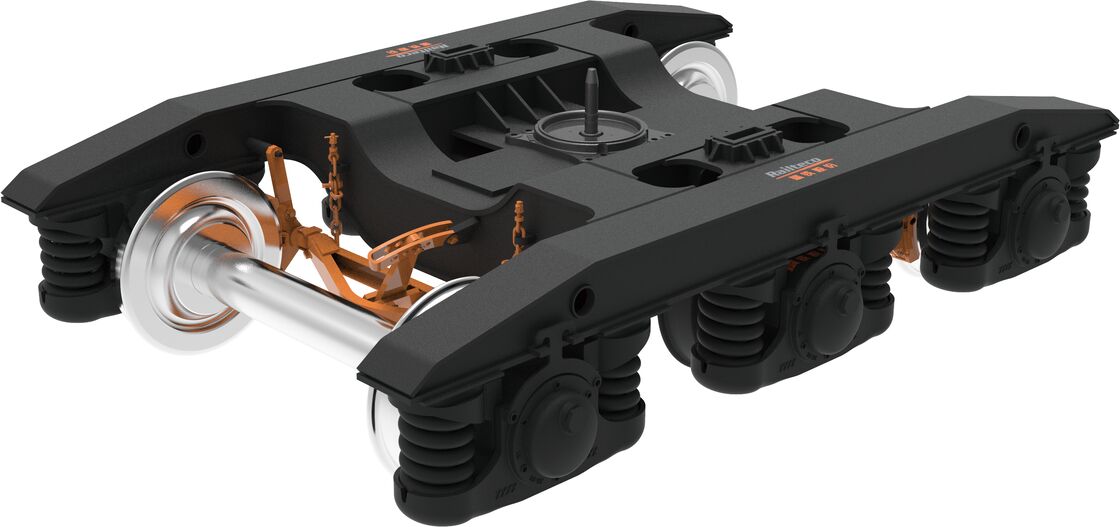

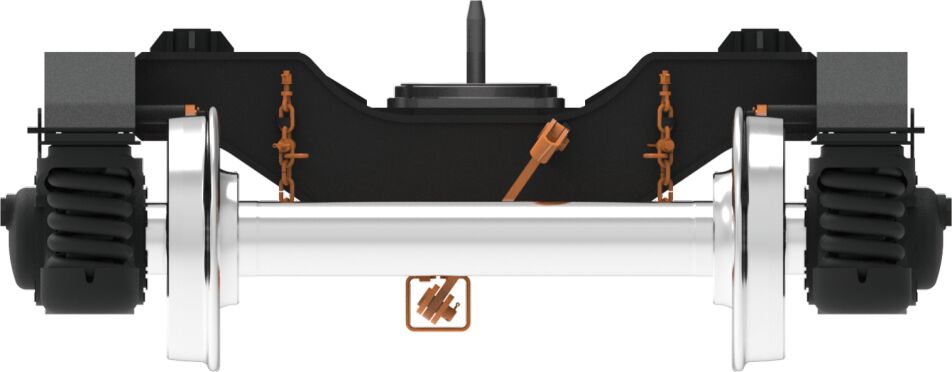

Reference Photo

The RTHZ56 Bogie Adopts A Welded Frame Structure 0

Q&A

Q1: What type of frame structure does the bogie adopt?

The bogie mainly adopts a welded frame structure, which consists of two side beams, two cross beams, and one middle beam.

Q2: What materials and bearings are used for the wheels?

The wheels are made of integral silicon steel, and self-aligning roller bearings are adopted.

Q3: What about the spring system of the bogie?

The bogie is equipped with springs featuring three-stage spring stiffness.

Q4: What materials are used for the connecting parts between the bogie and the vehicle body?

Non-metallic materials such as nylon and rubber are used for the connecting components between the bogie and the vehicle body.

Q5: Where are the side bearings installed?

Two rigid side bearings are arranged on both sides of the frame.
