Design and Composition of RTHZ15 Bogie for Railway Engineering Vehicles

1435mm railway bogie

1435mm bogie in train

Place of Origin:

China

Brand Name:

Railteco

Certification:

AAR

Model Number:

RTHZ15

Request A Quote

Product Details

Gauge:

1435mm

Max. Axle Load:

25t

Tare Weight:

≤15t

Wheel Base:

1981mm

Max. Running Speed:

40km/h

Diameter Of Wheels:

Ф840mm

Highlight:

1435mm railway bogie

1435mm bogie in train

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

13000-20000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

RTHZ56 Bogie Structural Design And Key Component Configuration

Get Best Price

RTHZ29 Bogie Is Mainly Constructed With A Welded Frame Structure

Get Best Price

RTHZ15 Bogie Is Mainly Applied To Railway Engineering Vehicles Used For Rail Transportation

Get Best Price

The RTHZ56 Bogie Adopts A Welded Frame Structure

Get Best Price

Contact Now

Product Description

Design and Composition of RTHZ15 Bogie for Railway Engineering Vehicles

Product Overview

This type of bogie is mainly applied to railway engineering vehicles for rail transportation and bridge erection. It is a five-axle welded frame bogie, composed of a welded frame, two powered wheelsets, three unpowered wheelsets, an axle box suspension system, a foundation brake device, a lower side bearing assembly, as well as other supporting components

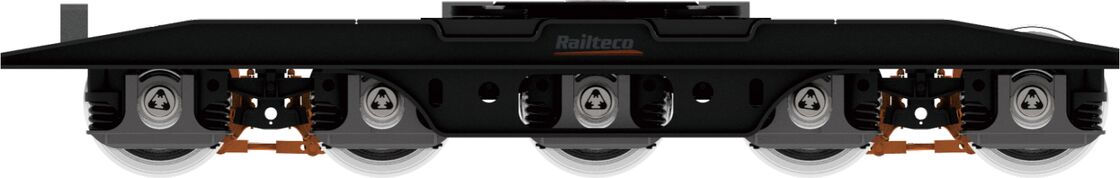

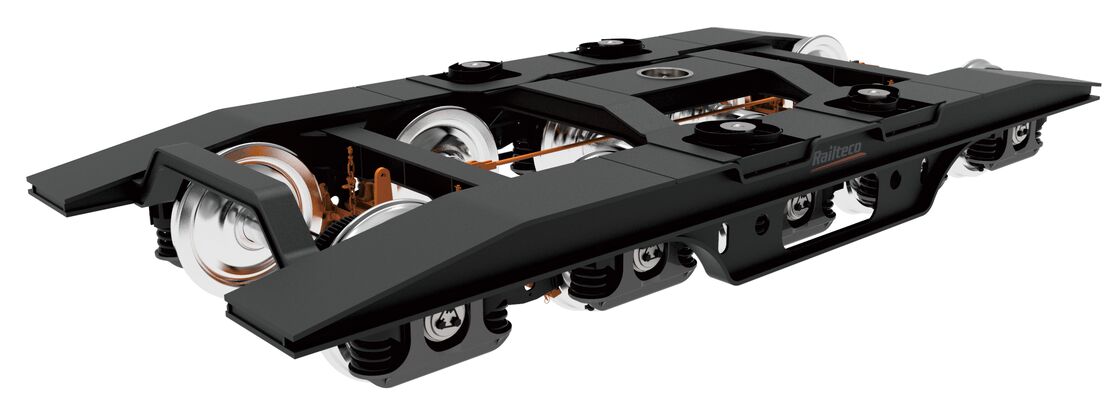

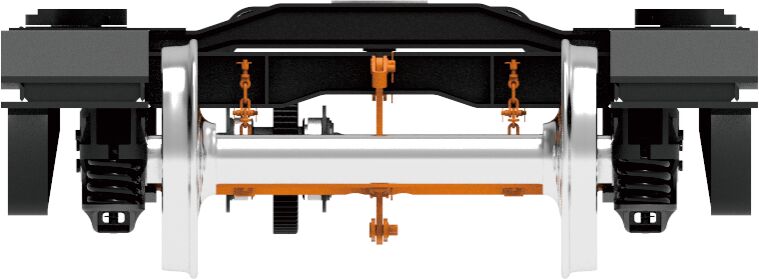

Reference photo

Q&A

What kind of vehicles is this bogie mainly used for?

This bogie is mainly used in railway engineering vehicles designed for rail transportation and bridge erection operations.
What is the axle configuration of this bogie?

It is a five-axle welded frame bogie, consisting of two powered wheelsets and three unpowered wheelsets.
What are the main constituent assemblies of this bogie?

The bogie mainly consists of a welded frame, wheelsets, axle box suspension, foundation brake, lower side bearing device and other ancillary components.
