180t Concrete Beam Carriage Vehicle 12km/h 1435mm Gauge Railway Transporter

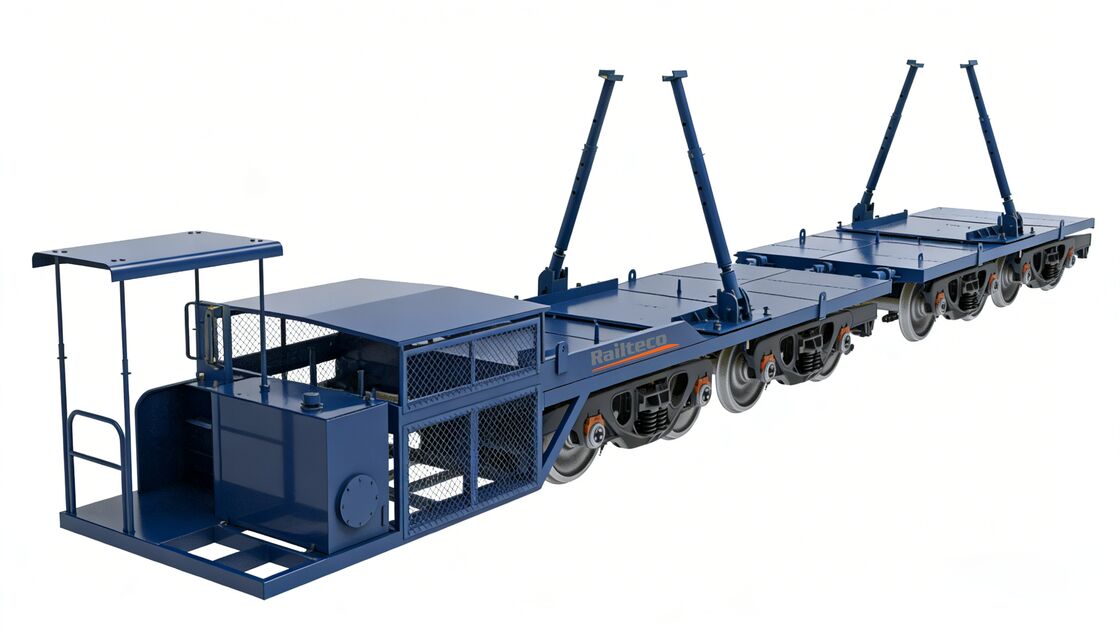

The 180t Concrete Beam Carriage Vehicle is a specialized transport solution designed for Chinese standard gauge railways (1435mm). Operating in tandem with 180t bridging machines such as the Tj180, this vehicle efficiently transports railway concrete bridges, including types 2201 and 2101. Its unique two-car configuration with electric-powered bogies ensures reliable and precise beam feeding for bridge construction projects.

• Tare Weight: ≤35 tons

• Load Weight: 180 tons

• Max. Gradeability: 20%

• Max. Operating Speed (Empty): 0–12 km/h

• Max. Operating Speed (Loaded): 0–6 km/h

• Min. Horizontal Curve Radius: 180 m

• Total Driving Power: ≥90 kW

• Gauge: 1435 mm

• Fixed Wheelbase: 1750 mm

• Max. Width: 2500 mm

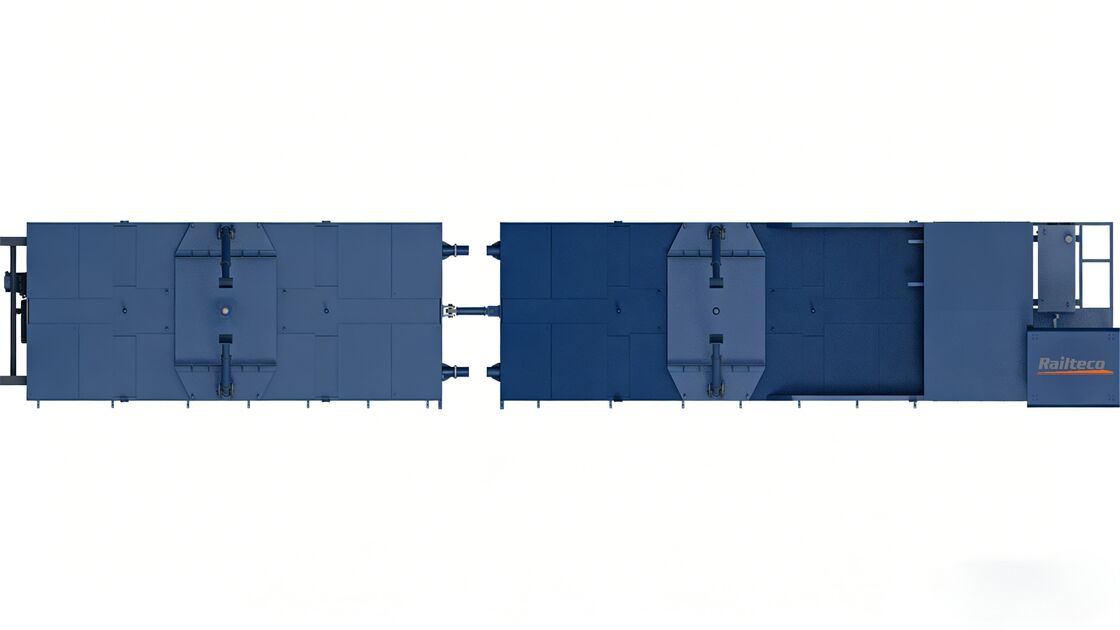

• Two-Car Design: Comprises a front car and a rear car

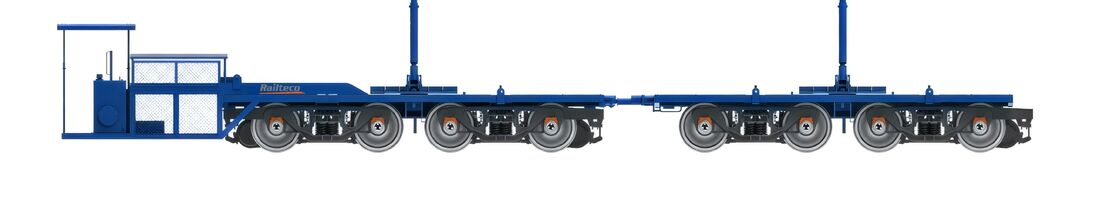

• Rear Car: Features a power cabin and is driven by two electric-powered bogies

• Front Car: Driven by one electric-powered bogie and supported by one non-powered bogie

• Application: Transports concrete beams for railway bridges; compatible with 180t bridging machines

This vehicle is designed to transport heavy concrete bridge beams (up to 180 tons) for railway construction. It works in coordination with 180t bridging machines to feed beams into position during bridge erection on Chinese standard gauge tracks.

The rear car contains a power cabin and is driven by two electric-powered bogies. The front car is powered by one electric-powered bogie and supported by a non-powered bogie. This configuration ensures stable and controlled movement, especially when carrying heavy loads.

It is compatible with railway concrete bridges such as types 2201 and 2101, as well as other standard concrete beams used in Chinese railway construction. It also supports beam feeding for 180t bridging machines like the Tj180.
