Y25LSD-K Bogie For 1435 Mm Gauge Wagons

1435 mm gauge railway bogie

Y25LSD-K wagon bogie

railway bogie for wagons

Place of Origin:

China

Brand Name:

Railteco

Certification:

AAR

Model Number:

Y25LSD-K

Request A Quote

Product Details

Running Speed(Max):

120km/h

Diameter Of Wheels:

Ф920mm

Frame:

Welded

Material:

Steel

Highlight:

1435 mm gauge railway bogie

Y25LSD-K wagon bogie

railway bogie for wagons

Payment & Shipping Terms

Minimum Order Quantity

1units

Price

13000-20000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

RTHZ56 Bogie Structural Design And Key Component Configuration

Get Best Price

RTHZ29 Bogie Is Mainly Constructed With A Welded Frame Structure

Get Best Price

RTHZ15 Bogie Is Mainly Applied To Railway Engineering Vehicles Used For Rail Transportation

Get Best Price

The RTHZ56 Bogie Adopts A Welded Frame Structure

Get Best Price

Contact Now

Product Description

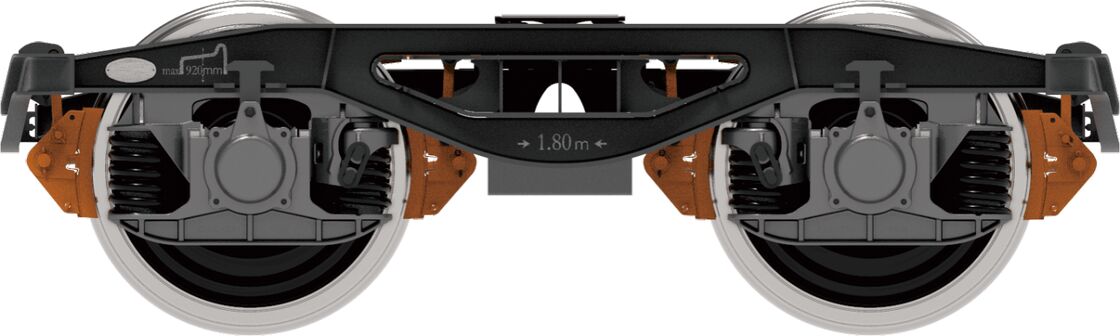

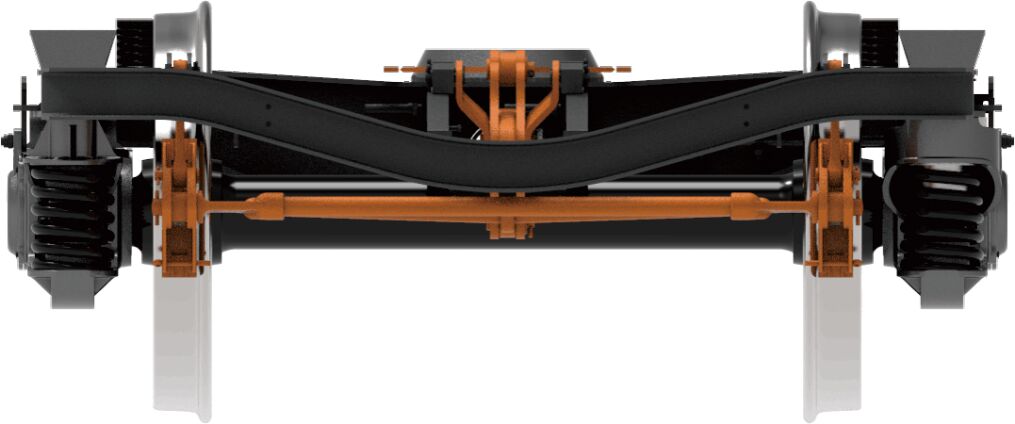

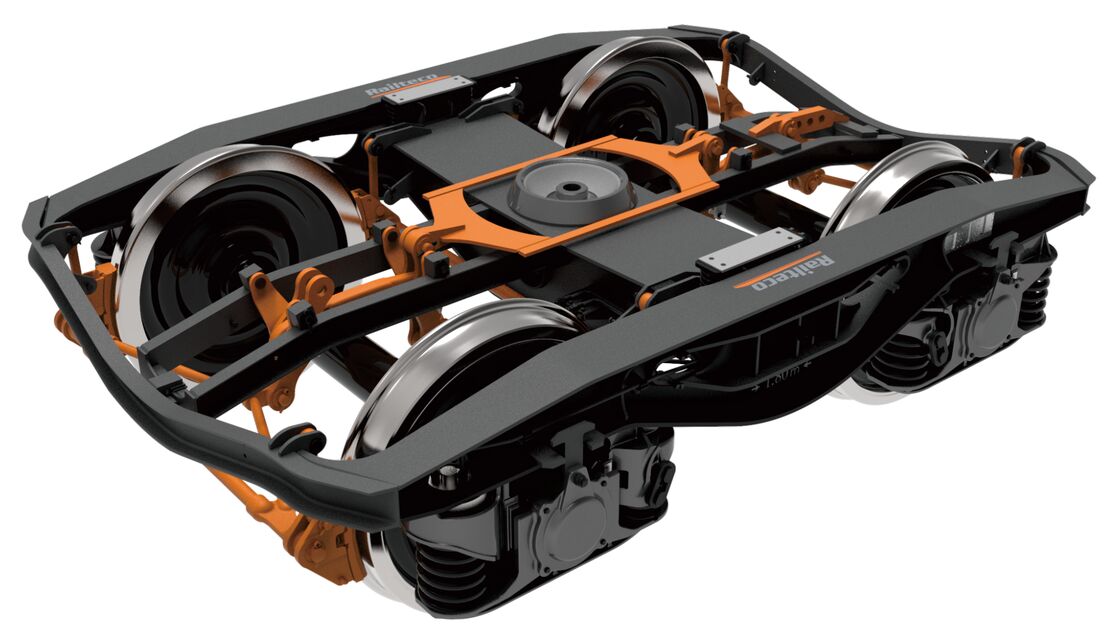

Y25LSD-K Bogie For 1435 Mm Gauge Wagons

Product Overview

This bogie is designed for operation on the 1435 mm standard gauge.

It is suitable for new-built wagons and wagon maintenance and refurbishment.

Key Characteristics

The axle load is 22.5 t, and the operating speed is 120 km/h.
The bogie mainly comprises wheelsets, axle boxes, suspension devices, bogie frame, foundation brake rigging, and load-proportional valves.
The bogie frame is of welded construction, featuring high structural rigidity and low unsprung mass.
Equipped with a spherical pivot bearing, the contact area between the bogie pivot and the car body is increased,resulting in uniform load distribution and enhanced capacity to transmit longitudinal and transverse forces.
A two-stage stiffness spring suspension system is adopted to improve the vertical ride comfort of empty wagons, ensuring excellent dynamic performance for both empty and loaded conditions.
The application of Lenoir damping devices satisfactorily meets the demand for different damping forces between empty and loaded wagon operations.

Technical Specifications

Gauge	1435mm
Axle Load	22.5t
Tare weight	≤4.7t
Wheel base	1800mm

Reference Photo

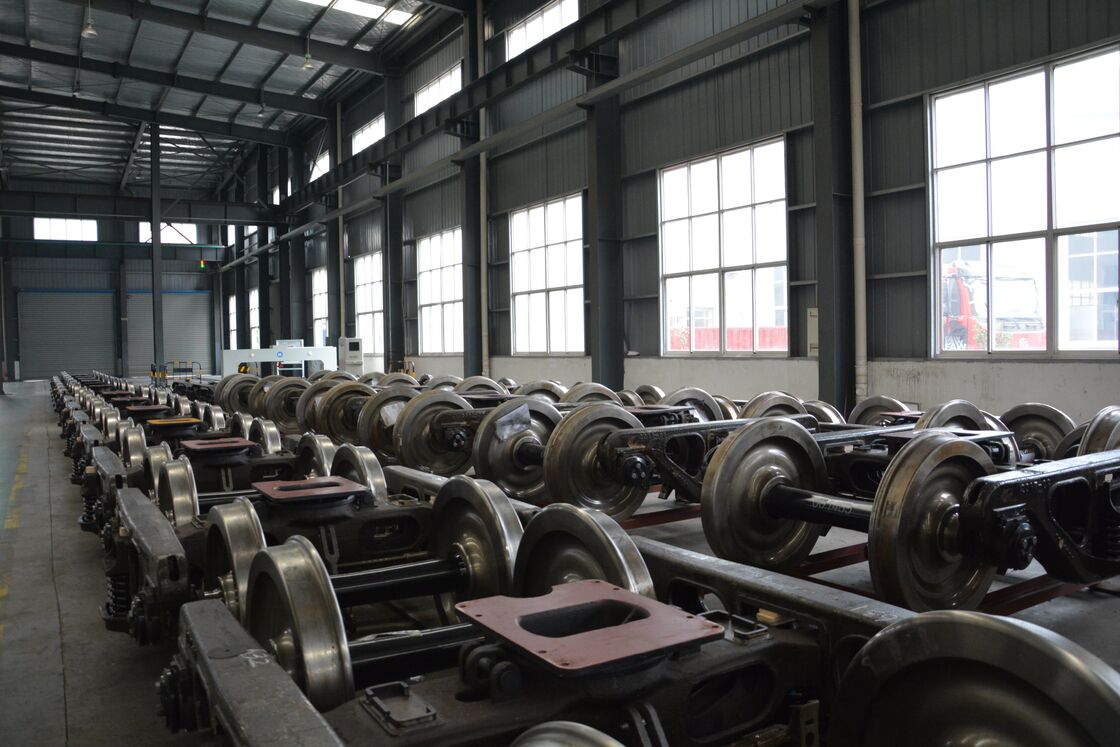

Y25LSD-K Bogie For 1435 Mm Gauge Wagons 0

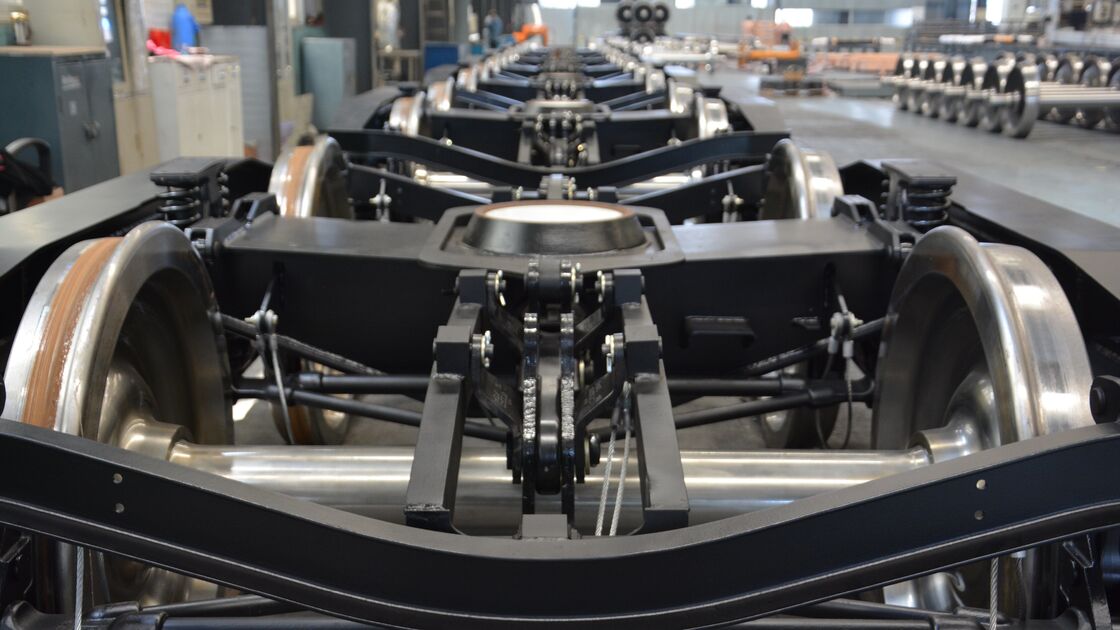

Y25LSD-K Bogie For 1435 Mm Gauge Wagons 1

Q&A

Q1: What are the application scope and main parameters of this bogie?

This bogie is designed for 1435 mm standard gauge railways, suitable for new-built and overhauled wagons.

It has an axle load of 22.5 t and an operating speed of 120 km/h.

Q2: What are the structural features of the bogie frame?

The bogie frame is of welded construction, featuring high structural rigidity and low unsprung mass.

It is equipped with a spherical pivot bearing to achieve uniform load distribution and improve force transmission between the bogie and car body.

Q3: What advantages does the suspension and damping system provide?

This bogie adopts a two-stage stiffness spring suspension to improve vertical ride comfort when empty.

Lenoir damping devices are applied to meet different damping requirements for both empty and loaded wagons,ensuring excellent dynamic performance under all operating conditions.
