RTK26 Special Car Carrier Is Suitable For Operation On 1000mm Gauge Railway

Introducing the RTK26 Special Car Carrier — a versatile and robust rail vehicle designed for efficient transportation of automobiles and light cargo on 1000mm gauge networks. Its two-level design maximizes load capacity and operational flexibility.

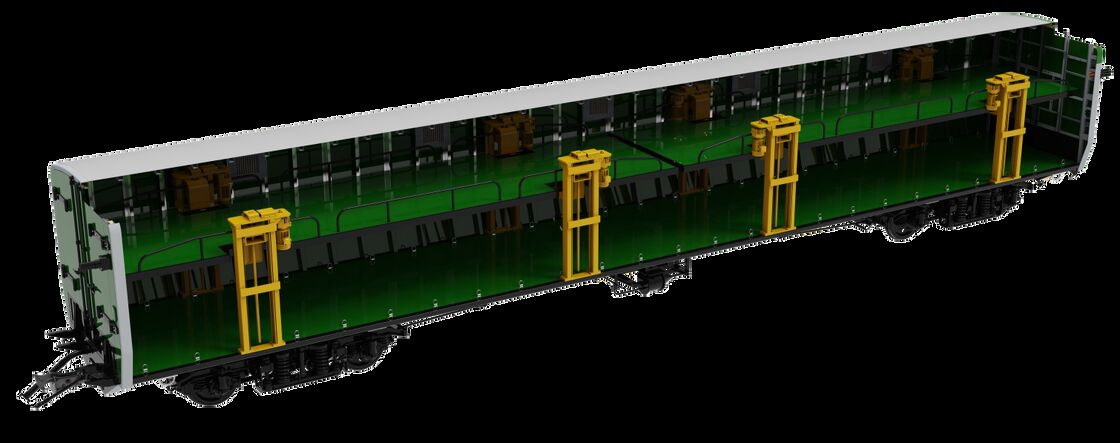

The RTK26 features a two-level transport layout: the lower deck is optimized for carrying cars, while the upper deck accommodates other small goods, offering enhanced logistical versatility. Its body is an all-steel welded integral load-bearing structure, comprising a reinforced underframe, side walls, end doors, roof, upper floor with a lifting mechanism, and ventilators for adequate airflow.

Equipped with an MCA-PH coupler buffer device (HOOK at A-end, YOKE at B-end) and a dual-pipe braking system — integrating both vacuum and Knorr air brakes compliant with UIC 540 — the carrier ensures secure connections and safe, responsive braking under various load conditions.

Mounted on reliable Bombardier MD52-M bogies, the RTK26 delivers stable performance and easy maneuverability even on curves as tight as 109 meters, making it suitable for diverse rail routes.

From its robust lifting mechanism to its ventilated cargo areas, every detail is designed to simplify loading, protect cargo, and extend service life under continuous use.

• Dual-level design: transport cars + small goods simultaneously
• High load capacity with 10t axle load rating
• Reliable Knorr braking system (UIC 540 compliant)
• Excellent maneuverability with 109m min. curve radius
• Durable all-steel welded construction

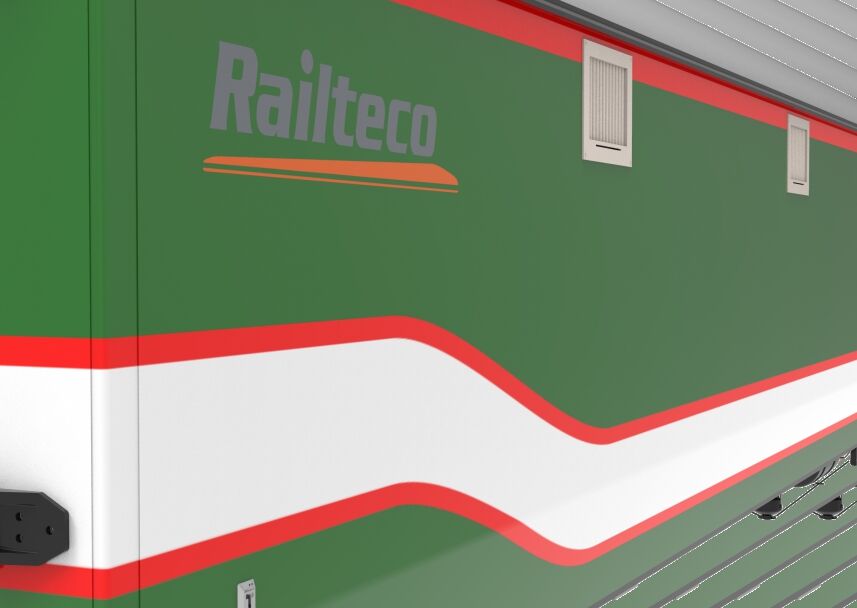

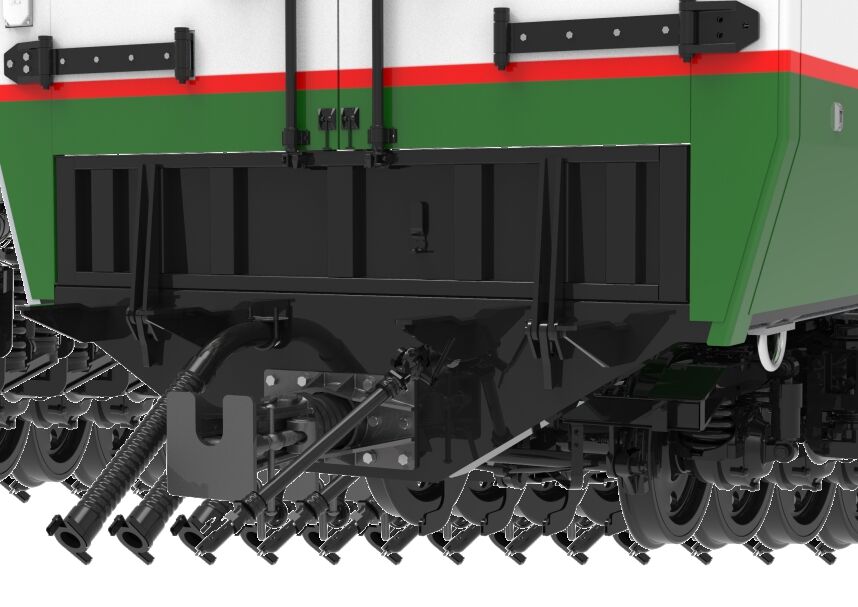

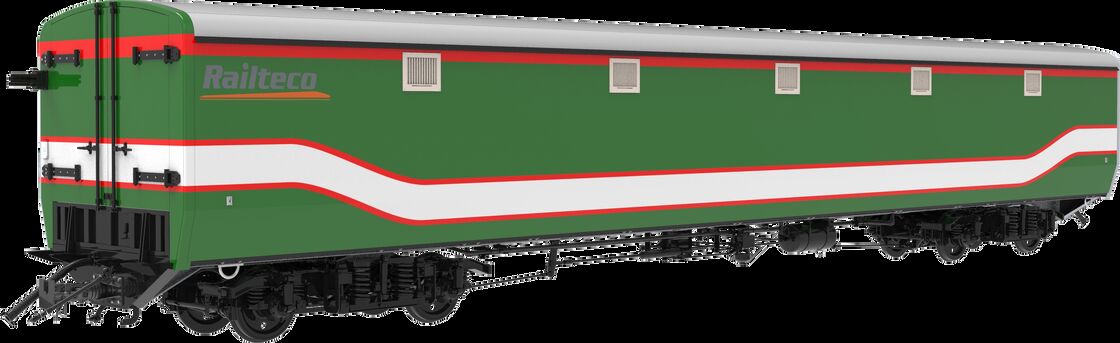

Reference Photos

Streamline your automotive and cargo logistics with the adaptable and dependable RTK26 Special Car Carrier.

Q: What is the unique advantage of the RTK26 Special Car Carrier's design?
A: The RTK26 features a dual-level design that enables simultaneous transport of automobiles on the lower deck and small goods on the upper deck, maximizing load capacity and logistical flexibility.

Q: What are the key technical specifications of this car carrier?
A: It operates on 1000mm gauge tracks with a 10t axle load, achieves a maximum speed of 80 km/h, and can negotiate curves as tight as 109 meters, making it highly adaptable to diverse rail routes.

Q: How does the RTK26 ensure safe and reliable operation?
A: It is equipped with an MCA-PH coupler buffer device and a dual-pipe braking system integrating vacuum and Knorr air brakes compliant with UIC 540, ensuring secure connections and responsive braking under various load conditions.

Q: What makes this car carrier durable and easy to use?
A: Its all-steel welded integral load-bearing structure, reinforced underframe, and ventilated cargo areas ensure long-term durability, while the lifting mechanism on the upper deck simplifies loading and unloading operations.
