The Meter Gauge Stainless Steel Railway Special Car Carrier Wagon

meter gauge refrigerated boxcar

meter gauge car carrier wagon

stainless steel refrigerated boxcar

Place of Origin:

China

Brand Name:

Railteco

Model Number:

The Meter Gauge Stainless Steel Special Car Carrier

Request A Quote

The Meter Gauge Stainless Steel Railway Special Car Carrier Wagon

Product Details

Floor Height(unloaded):

965mm

Coupler Height(unloaded):

585mm

Guage:

1000mm

Application:

Transportation

Highlight:

meter gauge refrigerated boxcar

meter gauge car carrier wagon

stainless steel refrigerated boxcar

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

300000-600000usd/unit

Packaging Details

Railteco Standard Export packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000unit/year

RTK26 Special Car Carrier 1000mm Gauge 80km/h for Bangladesh Railways

Get Best Price

RTK26 1000mm Gauge Special Car Carrier with Knorr Braking System

Get Best Price

RTK26 Special Car Carrier Is Suitable For Operation On 1000mm Gauge Railway

Get Best Price

Contact Now

Product Description

The Meter Gauge Stainless Steel Special Car Carrier

Product Overview

This special car carrier is suitable for operation on a 1000mm gauge railway in Bangladesh, and the lower layer is mainly used for transporting cars, while the upper layer is used for transporting other small goods. The special car carrier is mainly composed of car body, coupler & draft gear, braking system, electrical device, bogie, etc. The car body is an all-steel welded overall load-bearing structure, mainly composed of underframe, side walls, end doors, roof, upper floor and lifting mechanism, and ventilators.

Key Characteristics

Adopt MCA-PH coupler buffer device.
The A end of the car is the HOOK, and the B end of the car is the YOKE.
The braking system adopts dual pipe braking, with one pipe for vacuum braking and the other for air braking.
The air braking system adopts Knorr braking, which conforms to UIC 540 standard. The bogie adopts Bombardier MD52-M type bogie

Technical Sepcification

Guage	1000mm
Axle weight	10t
Tare weight	25.5t
Maximun Operating speed	100km/h
Min, Curve radius	109mm
Length	18759mm

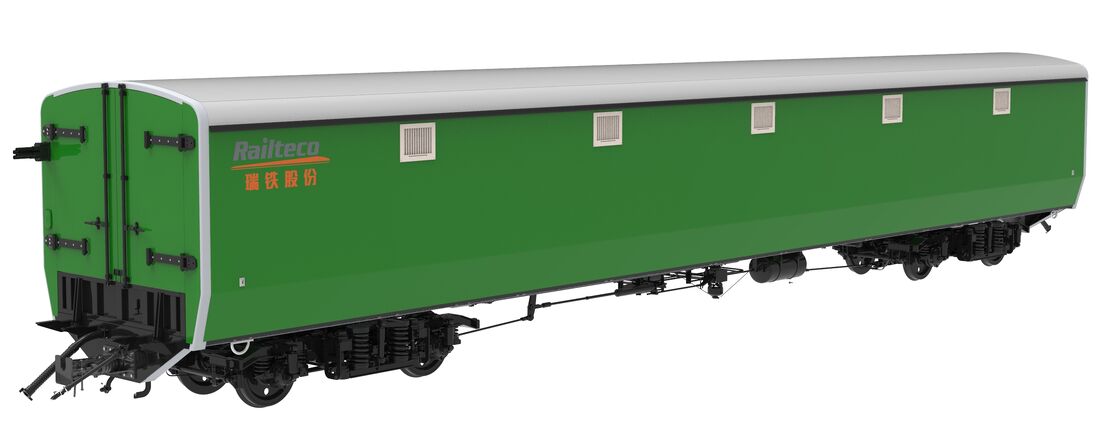

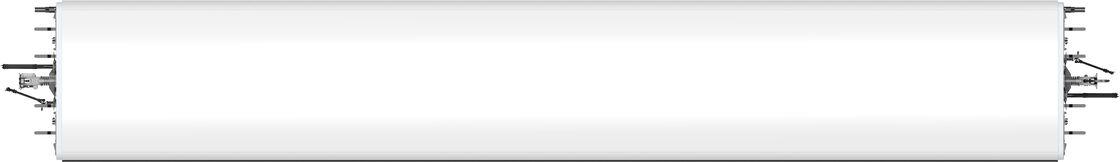

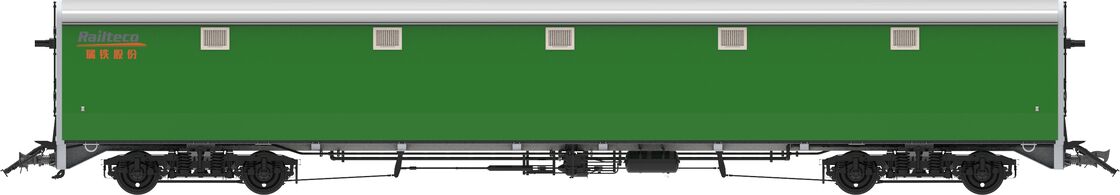

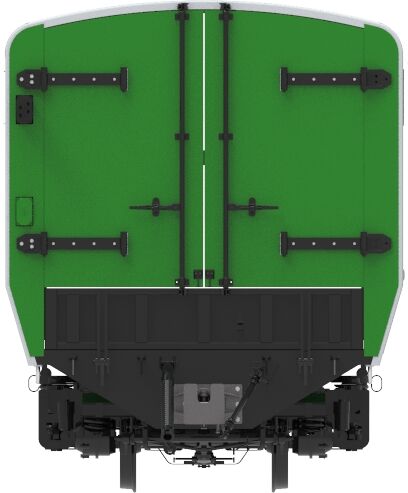

Stainless steel Car Reference Pictures

The Meter Gauge Stainless Steel Railway Special Car Carrier Wagon 0

The Meter Gauge Stainless Steel Railway Special Car Carrier Wagon 1
