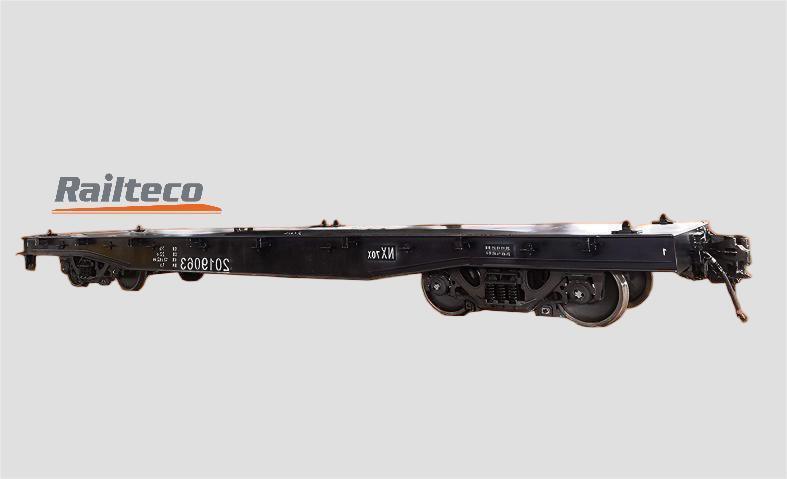

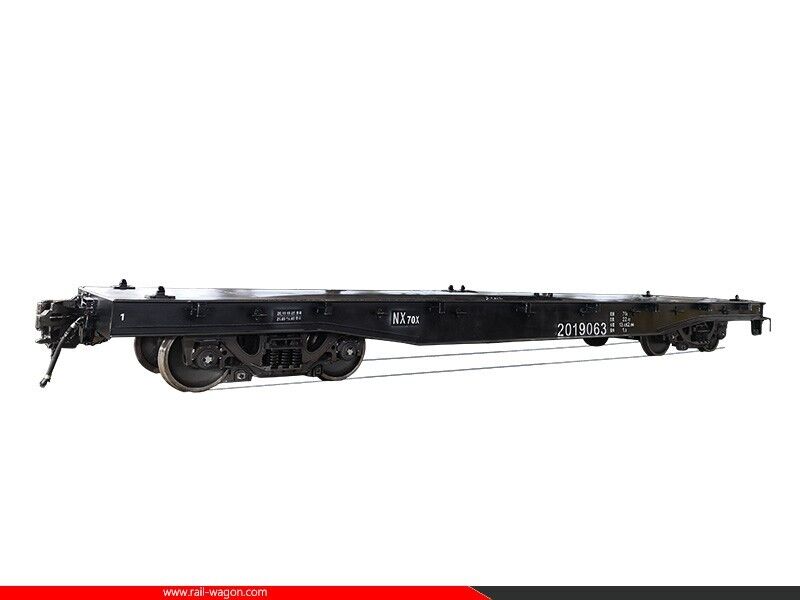

Payload 61t 2 TEU Rail Freight Flat Wagon
Product Overview
The Railway Flat Wagon is a robust and versatile transportation solution designed to meet the demanding needs of modern rail freight operations. Constructed from high-quality steel, this flat deck wagon ensures exceptional durability and strength, making it ideal for carrying heavy and oversized loads across long distances.
Key Features
- Product Name: Railway Flat Wagon
- Also known as Railway Flat Deck Wagon and Flat Rail Cargo Carrier
- Height: 1.5 Meters
- Brake Type: Air Brake
- Material: Steel
- Payload Capacity: 61t (2 TEU)
- Suspension Type: Coil Spring
Technical Specifications
| Product Name |
Railway Flat Wagon |
| Payload |
61t (2 TEU) |
| Max Operating Speed |
100 Km/h |
| Brake Type |
Air Brake |
| Width |
3 Meters |
| Track Gauge |
1435 mm |
| Material |
Steel |
| Bogie Type |
Y25Lsd1-K |
| Tare Weight |
31 T |
| Suspension Type |
Coil Spring |
Applications
This versatile flat wagon is engineered to handle diverse cargo transportation needs across construction, manufacturing, energy, and intermodal transport sectors. Its 3-meter width and 12-meter length provide ample space for large steel beams, machinery, wind turbine components, and other oversized equipment.
Customization Options
Our Flatbed Rail Transport Wagon offers customizable solutions to meet specific transportation needs. With a fixed bogie wheelbase of 1727.2mm and robust steel construction, we can modify size, load requirements, or brake configurations to enhance functionality and durability.
Support & Services
We provide comprehensive technical support including wagon selection assistance, customization guidance, maintenance best practices, and staff training programs. Our service centers offer inspection, repair, and refurbishment services to ensure optimal performance throughout the product lifecycle.
Packaging & Shipping
The Railway Flat Wagon is securely packaged using heavy-duty wooden crates and reinforced steel frames with industrial-grade padding. Shipping is conducted via specialized rail transport or heavy-duty trucks, with real-time tracking and secure loading using cranes and heavy-duty restraints.
Frequently Asked Questions
What is the maximum load capacity of the Railway Flat Wagon?
The Railway Flat Wagon is designed to carry loads up to 60 tons, making it suitable for heavy and oversized cargo transport.
What are the dimensions of the Railway Flat Wagon?
The flat wagon measures 12 meters in length and 3 meters in width, providing a spacious platform for various types of freight.
Is the Railway Flat Wagon compatible with standard railway systems?
Yes, the Railway Flat Wagon is built to meet international gauge standards, ensuring compatibility with most railway networks worldwide.
What materials are used in the construction of the Railway Flat Wagon?
The wagon is constructed from high-strength steel and reinforced with durable components to ensure long-lasting performance and safety.
Can the Railway Flat Wagon be customized for specific cargo needs?
Yes, customization options are available, including additional securing mechanisms, sidewalls, and specialized coatings to suit different types of cargo.
