Multiple Cargoes Railway Flat Wagon 75km/H Lightweight Container Wagon

Multiple Cargoes Railway Flat Wagon

Railway Flat Wagon 75km/h

lightweight container wagon

Place of Origin:

China

Brand Name:

Railteco

Certification:

AAR

Model Number:

RTH44 FLAT WAGON

Request A Quote

Multiple Cargoes Railway Flat Wagon 75km/H Lightweight Container Wagon

Product Details

Maximum Operating Speed (empty, Loaded):

75km/h

Length:

13650mm

Height From Track Surface To Container Load Surface (unloaded):

1053mm

Height From Track Surface To Coupler Center Line (unloaded Condition):

585mm

Highlight:

Multiple Cargoes Railway Flat Wagon

Railway Flat Wagon 75km/h

lightweight container wagon

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

60000-80000usd/unit

Packaging Details

Railteco Standard Export packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

Customizable 23t Goods Train Wagon Transport Container Wagon

Get Best Price

120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon

Get Best Price

RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

Get Best Price

1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons

Get Best Price

Contact Now

Product Description

Flat Wagon Has The Function Of Loading Multiple Cargoes

Product Overview

This wagon features excellent multi-purpose cargo loading capability. It is designed to accommodate 20GP and 40GP international standard containers, while also being suitable for transporting a wide variety of goods including steel products, vehicles, boxed cargo, large concrete bridges, and other heavy or oversized items.

Key Characteristics

The wagon is characterized by its lightweight structure, high loading capacity, and strong adaptability to various types of cargo.
Movable side walls and movable end walls can be optionally installed according to customer requirements.

Technical Specifications

Tare Weight	≤16t
Gauge	1000mm
Load Capacity	58t
Axle Load	18.5t
Min. Curve Radius	88m

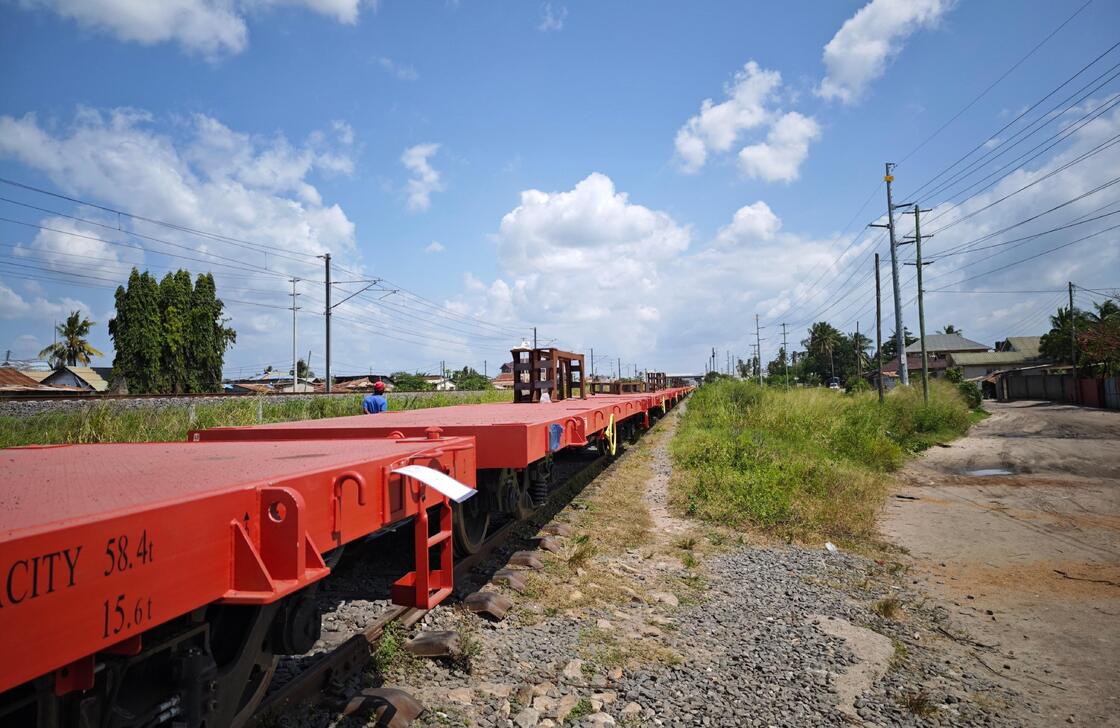

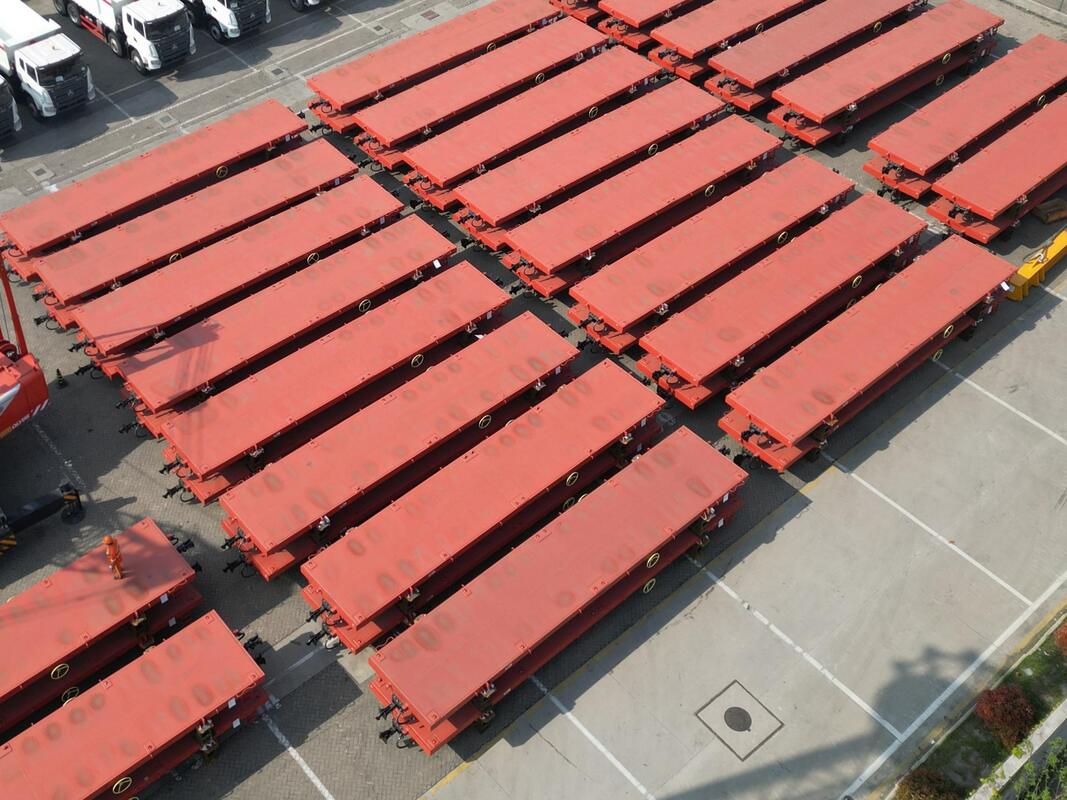

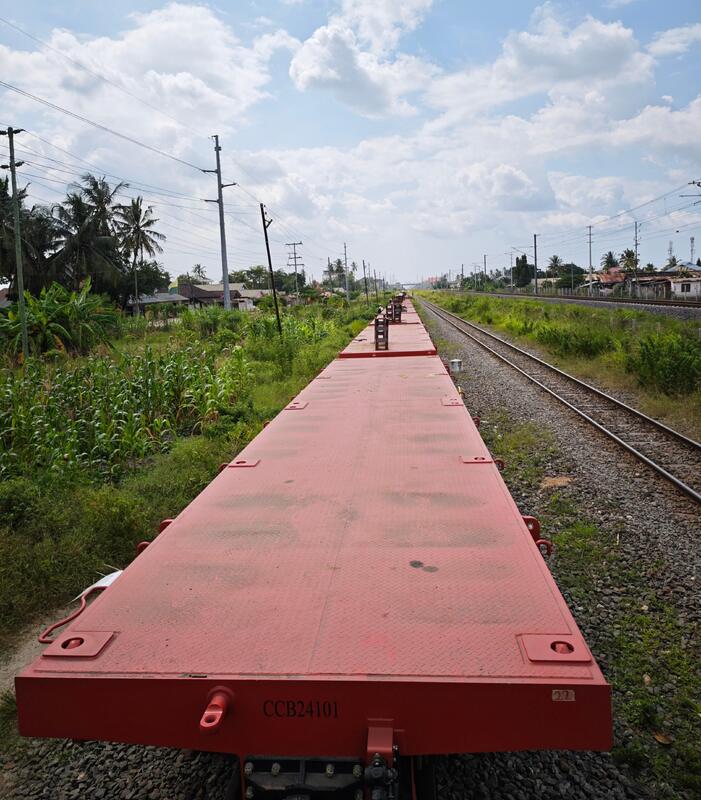

Reference Photos

Frequently Asked Questions

Q1: What types of cargo can this wagon carry?

This wagon is designed with versatile multi-cargo loading capacity. It can carry 20GP and 40GP international standard containers, and also transport various goods such as steel products, automobiles, boxed cargo, large concrete bridges, and other heavy or oversized materials.

Q2: What are the key advantages of this wagon?

The wagon features a lightweight structure, high loading capacity, and wide cargo adaptability, making it suitable for multiple transportation scenarios in railway logistics.

Q3: Can the structure of this wagon be customized?

Yes. According to customer requirements, the wagon can be equipped with movable side walls and movable end walls to meet different loading and fixing demands.
