20ft 40ft Railway Flat Wagon Railway Container Wagon 30t

20ft Railway Flat Wagon

40ft Railway Flat Wagon

railway container wagon 30t

Place of Origin:

China

Brand Name:

Railteco

Certification:

TSI

Model Number:

RTH44

Request A Quote

20ft 40ft Railway Flat Wagon Railway Container Wagon 30t

Product Details

Name:

Flat Wagon

Usage:

Carry 20ft Or 40ft Containers

Axle Load:

18.5t

Load Capacity:

58t

Highlight:

20ft Railway Flat Wagon

40ft Railway Flat Wagon

railway container wagon 30t

Payment & Shipping Terms

Minimum Order Quantity

Price

58000-65000USD/unit

Packaging Details

Railteco Standard Export Package

Delivery Time

3-6 months

Payment Terms

L/C,T/T

Supply Ability

1000 units/year

Customizable 23t Goods Train Wagon Transport Container Wagon

Get Best Price

120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon

Get Best Price

RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

Get Best Price

1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons

Get Best Price

Contact Now

Product Description

Railway Flat Wagon For 20ft & 40ft Container Transport

Container Flat Wagon Overview

This versatile railway flat wagon is engineered for transporting multiple cargo types. It accommodates international standard 20GP and 40GP containers while also being suitable for steel, automobiles, boxed goods, and large concrete bridges.

Key Characteristics

Lightweight construction with heavy load capacity
Wide adaptability for various cargo types
Optional movable side walls and end walls available per customer requirements

Technical Specifications

Load Capacity	58t
Tare Weight	≤16t
Gross On Rail Road	74t
Axle Load	18.5t
Min. Horizontal Curve Radius	88m
Max. Operating Speed	75km/h
Concentrated Load (within six meters)	30t
Braking Distance	≤800m
Wagon Dimension	13650mm * 2740mm * 1063mm

Primary Applications

Designed for Tanzania's 1000mm gauge railways, this container flat wagon specializes in transporting ISO668 containers. It can accommodate either two 20ft containers, one 40ft container, or a single 20ft container positioned centrally.

The wagon supports both fixed marshaling operations and mixed marshaling with other wagons equipped with MCA-DA coupler and draft gear systems.

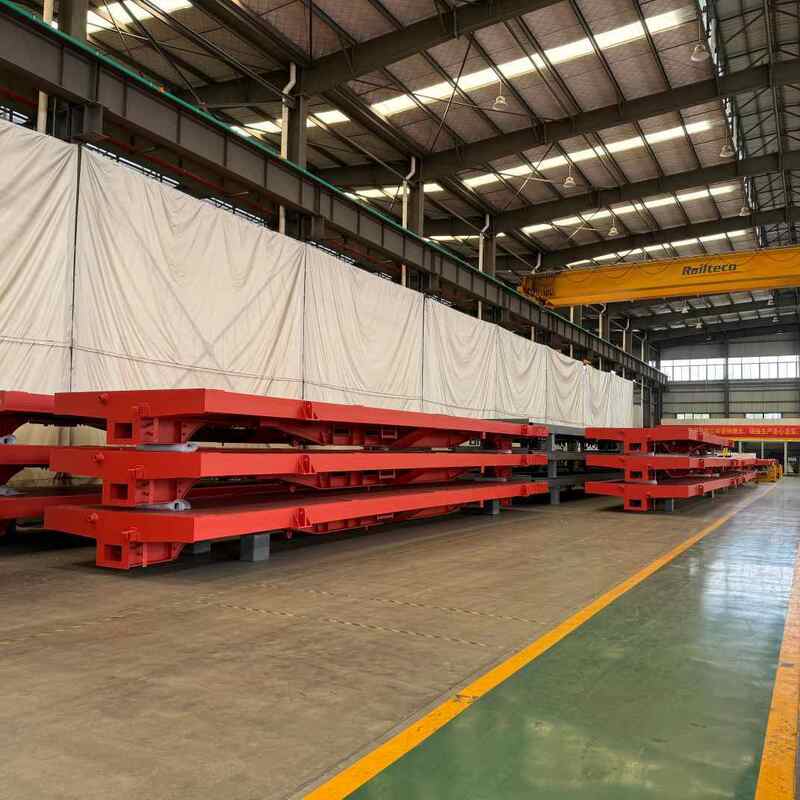

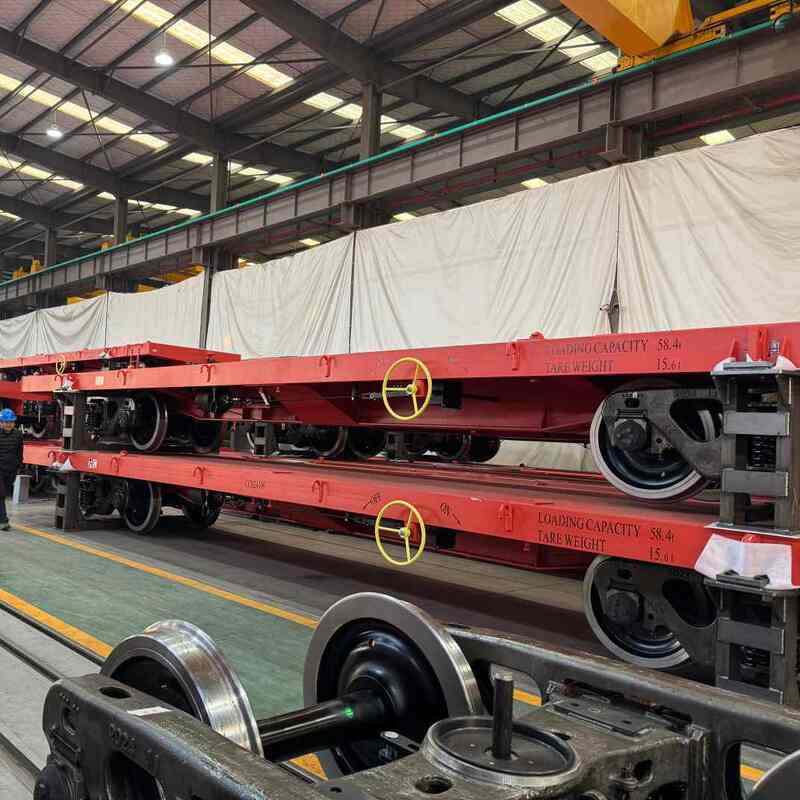

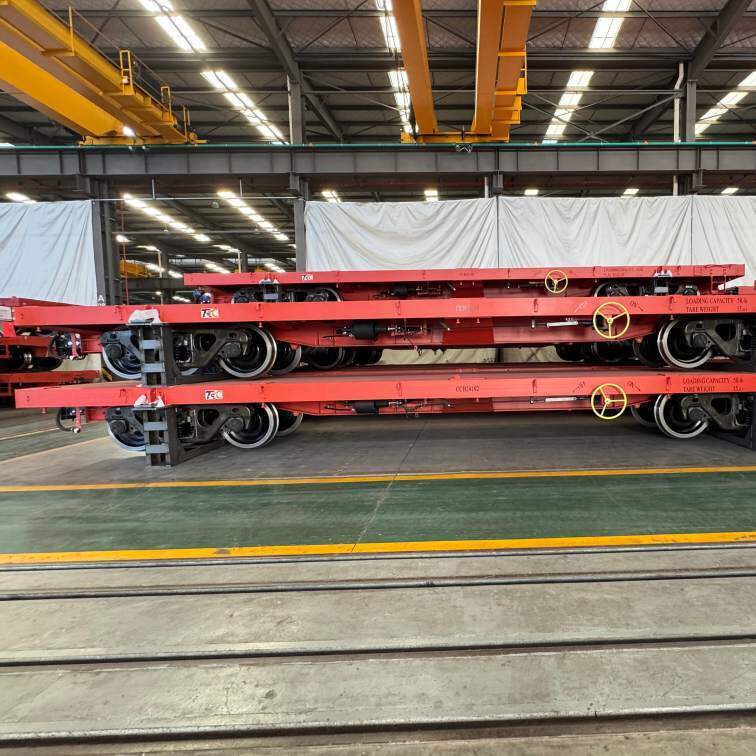

Flat Wagon Reference Photos
