RTH35 Railway Flat Wagons 1435mm Gauge Transporting 25m Rail Wagon

RTH35 railway flat wagons

Transporting railway flat wagons 1435mm

25m rail wagon

Place of Origin:

China

Brand Name:

Railteco

Certification:

TSI

Model Number:

RTH35 Flat wagon

Request A Quote

RTH35 Railway Flat Wagons 1435mm Gauge Transporting 25m Rail Wagon

Product Details

Apply To:

1435mm Gauge Railways

Function:

Transporting 25m Long Rails And Sleepers.

Color:

Yellow And Black

Maximum Lifting Weight:

Highlight:

RTH35 railway flat wagons

Transporting railway flat wagons 1435mm

25m rail wagon

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

60000-80000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000unit/year

Customizable 23t Goods Train Wagon Transport Container Wagon

Get Best Price

120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon

Get Best Price

RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

Get Best Price

1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons

Get Best Price

Contact Now

Product Description

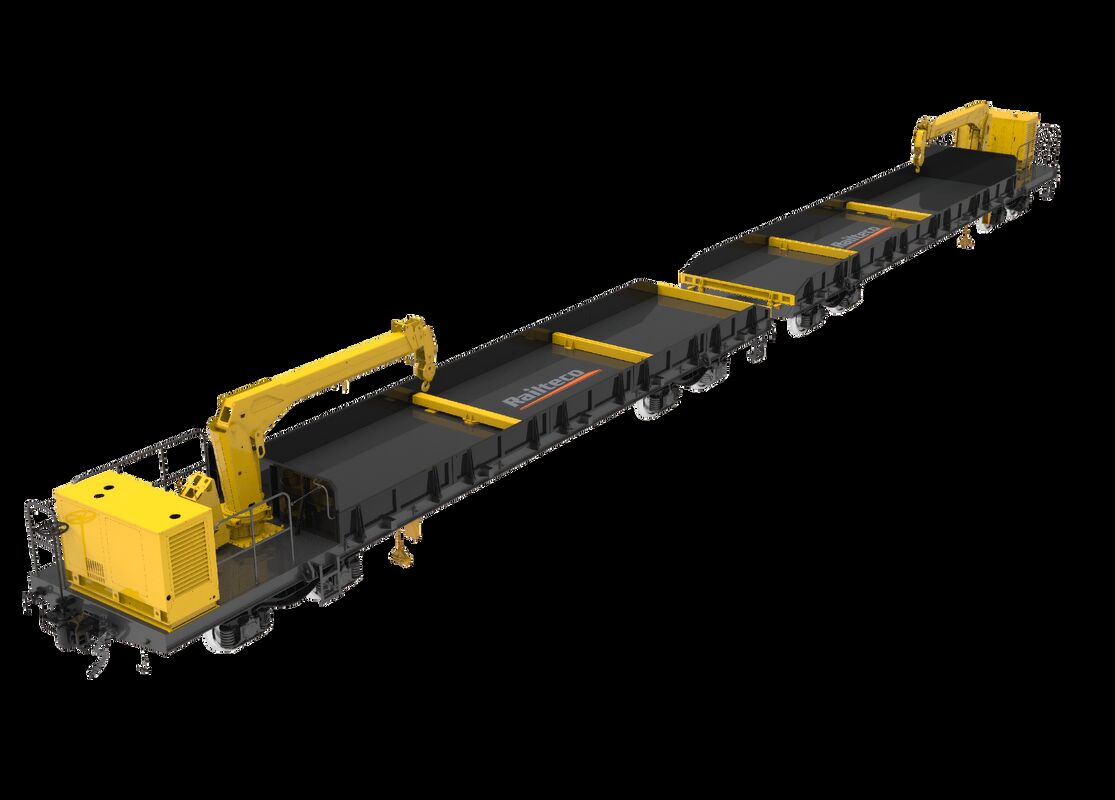

RTH35 Flat Wagon Set With Crane Mainly Used For Transporting 25m Long Rails And Sleepers

Product Overview

RTH35 Flat Wagon Mainly Used For Transporting 25m Long Rails And Sleepers.

Wagon Composition

The wagon is mainly composed of car body, coupler & draft gear, braking system, bogie, crane, rail support device, rail grab, etc.

Key Characteristics

Suitable for operation on 1435mm gauge railways
Mainly used for transporting 25m long rails and sleepers

Technical Specifications

Track Gauge	1435mm
Axle Load	20t
Load Capacity (Wagon Set)	72t
Tare Weight (Wagon Set)	About 42t
Maximum Operating Speed	120km/h
Minimum Curve Radius	90m
Car Body Length (Wagon Set)	32860mm
Length Between Truck Pivot Centers	10500mm
Maximum Width	2892mm
Maximum Height (Unloaded)	3312mm
Floor Height (Unloaded)	1138mm
Maximum Lifting Weight	5t

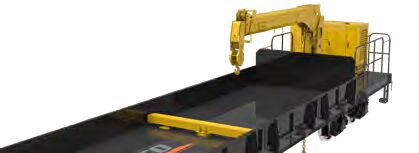

Reference Photos
