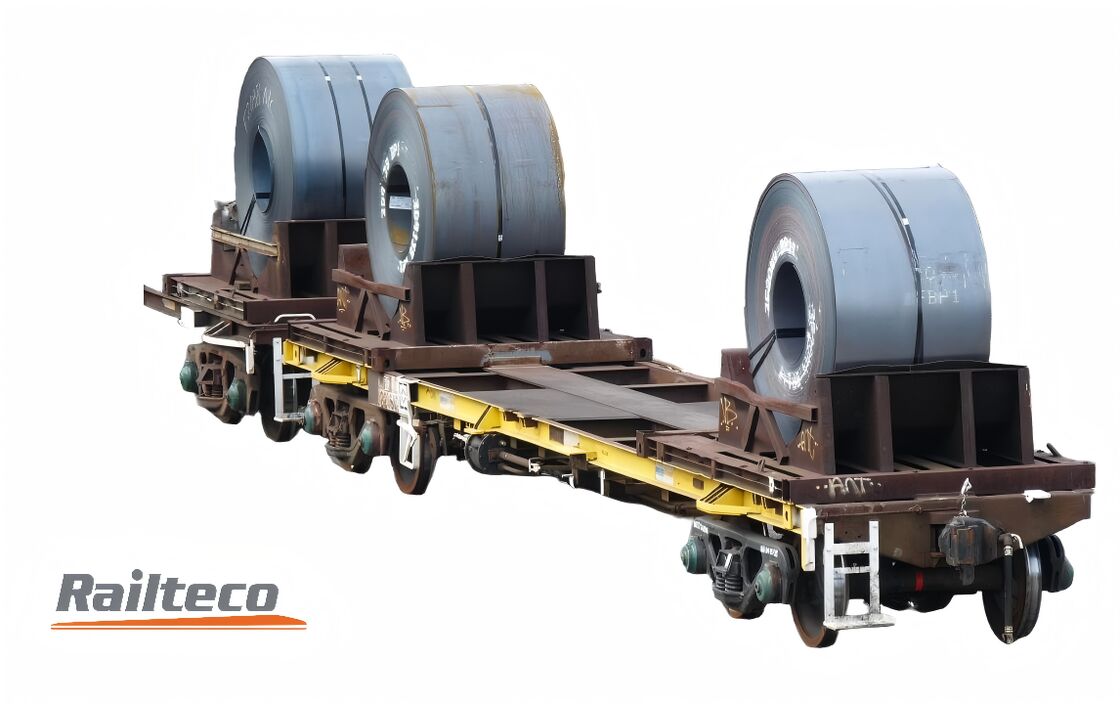

Steel Coil Railway Flat Wagon Transport Vehicle Track Gauge 1000mm Flatbed Rail Wagon

Steel Coil Railway Flat Wagon Transport Vehicle Track Gauge 1000mm Flatbed Rail Wagon

Steel Coil Railway Flat Wagon

Railway Flat Wagon 890mm

1000mm flatbed rail wagon

Place of Origin:

China

Brand Name:

Railteco

Certification:

AAR

Model Number:

Coil transport vehicle

CONTACT US
Request A Quote
Steel Coil Railway Flat Wagon Transport Vehicle Track Gauge 1000mm Flatbed Rail Wagon Steel Coil Railway Flat Wagon Transport Vehicle Track Gauge 1000mm Flatbed Rail Wagon
Product Details
Height From Rail Surface To Loading Surface(empty & New Wheel):
1103mm
Height From Rail Top To Coupler Center Line (empty & New Wheel):
890mm±15mm
Fixed Bogie Wheelbase:
1727.2mm
Wheel Diameter:
851mm
Highlight:

Steel Coil Railway Flat Wagon

,

Railway Flat Wagon 890mm

,

1000mm flatbed rail wagon

Payment & Shipping Terms
Minimum Order Quantity
1unit
Price
Depends on products specifications
Packaging Details
Railteco Standard Export Packing
Delivery Time
3-6months
Payment Terms
L/C,T/T
Supply Ability
500units/year
RELATED PRODUCTS
Good price Customizable 23t Goods Train Wagon Transport Container Wagon online

Customizable 23t Goods Train Wagon Transport Container Wagon

Get Best Price
Good price 120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon online

120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon

Get Best Price
Good price RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon online

RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

Get Best Price
Good price 1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons online

1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons

Get Best Price
CONTACT US
Contact Now
Product Description
Steel Coil Transport Vehicle With Axle Load Of 18t And Track Gauge Of 1000mm

Steel Coil Transport Vehicle With Axle Load Of 18t And Track Gauge Of 1000mm


Technical Specification

This technical specification applies to the bottom-door open-top wagons with an axle load of 25 tonnes and a track gauge of 1520 mm supplied to Uganda. Upon approval by the buyer, the present technical specification shall constitute an integral part of the supply contract.

This specification covers the general requirements, intended uses, key performance parameters, basic dimensions, primary structural design, coating and marking specifications, evaluation criteria, technical processes, vehicle testing, inspection and acceptance procedures, quality assurance, as well as other relevant aspects of the wagons.

Characteristics
  • The wagon mainly consists of car body, braking devices, coupler and draft gear devices, and bogies etc.
  • This wagon is used for transporting goods such as engineering machinery, mechanical equipment, containers, etc. that do not require rain and snow protection.
  • The braking system includes an air brake device and hand brake device.
  • It adopts CA-3 type coupler and matching hook tail frame, and adopts ST-90 type draft gear.
Main Performance Parameters
Load capacity 54t
Central Collection Load 40t
Tare weight 18t
Gross on rail road 72t
Axle load 18t
Minimum curve radius 74m
Operating speed 80 km/h
Wagon limit clearance Complies with the regulations of UR-G-LG-01
Basic Dimensions
Wagon length 13426mm
Underframe length 12500mm
Underframe width 2600mm
The distance between two bogie centers 9000mm
Maximum width of wagon 2760mm

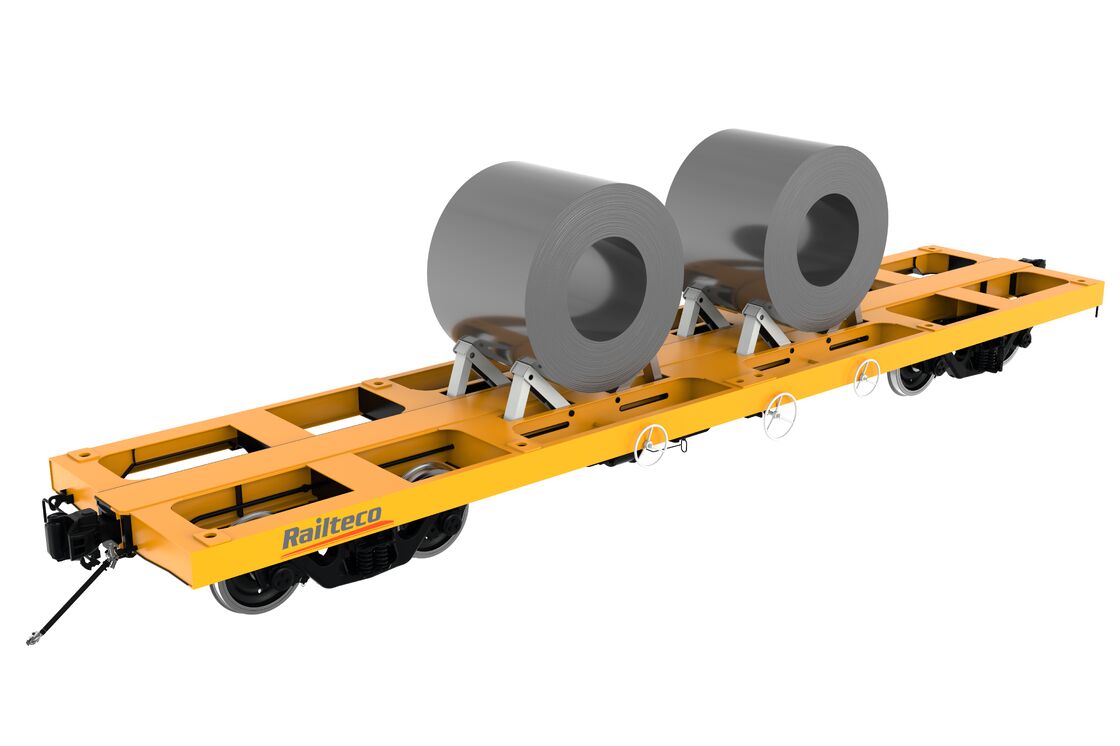

Reference Photos
