Railway Container railway flat wagons 65t 25t Axle for 20ft 40ft Containers

railway flat wagons 65t

railway flat wagons 25t Axle

40ft rail freight wagon types

Place of Origin:

China

Brand Name:

Railteco

Certification:

ISO

Model Number:

RTH44

Request A Quote

Railway Container railway flat wagons 65t 25t Axle for 20ft 40ft Containers

Product Details

Name:

Container Flat Wagon

Usage:

20ft Or 40ft Containers

Axle Load:

25t

Load Capacity:

65t

Highlight:

railway flat wagons 65t

railway flat wagons 25t Axle

40ft rail freight wagon types

Payment & Shipping Terms

Minimum Order Quantity

Price

58000-65000USD/unit

Packaging Details

Railteco Standard Export Package

Delivery Time

3-6 months

Payment Terms

L/C,T/T

Supply Ability

1000 units/year

Customizable 23t Goods Train Wagon Transport Container Wagon

Get Best Price

120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon

Get Best Price

RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

Get Best Price

1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons

Get Best Price

Contact Now

Product Description

Railway Container Carrier Bogies Flat Wagons for TRC

Container Flat Wagon Overview

Railway Container Carrier Bogies Flat Wagons

Container flat wagons (also known as container flatcars) are specialized railway freight cars designed exclusively for the efficient and secure transportation of ISO standard intermodal containers (20 ft, 40 ft, 45 ft, etc.). They form the backbone of modern rail intermodal transport, connecting sea, road, and rail logistics.

Key Characteristics

Loading Capacity: Typically 60-70 tonnes gross weight
Speed: Designed for 100-120 km/h operation on mainline railways
Deck Height: Low platform height (often around 1,000 mm from the rail) to maximize clearance for high-cube containers
Axle Load: Standard axle loads of 20-25 tonnes, varying by railway standard

Technical Specifications

Specification	Value
Load Capacity	65t
Tare Weight	≤16t
Gross On Rail Road	74t
Axle Load	25t
Min. Horizontal Curve Radius	88m
Max. Operating Speed	85km/h
Concentrated Load (within six meters)	30t
Braking Distance	≤800m
Wagon Dimension	13650mm × 2740mm × 1063mm

Primary Applications

Designed for Tanzania's 1000mm gauge railways, this container flat wagon specializes in transporting ISO668 containers. It can accommodate either two 20ft containers, one 40ft container, or a single 20ft container positioned centrally.

The wagon supports both fixed marshaling operations and mixed marshaling with other wagons equipped with MCA-DA coupler and draft gear systems.

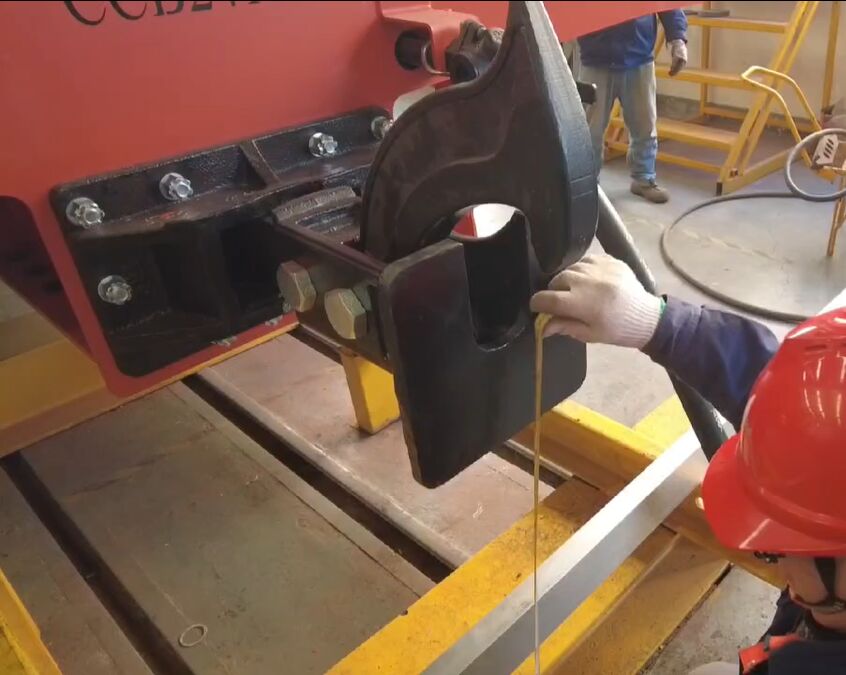

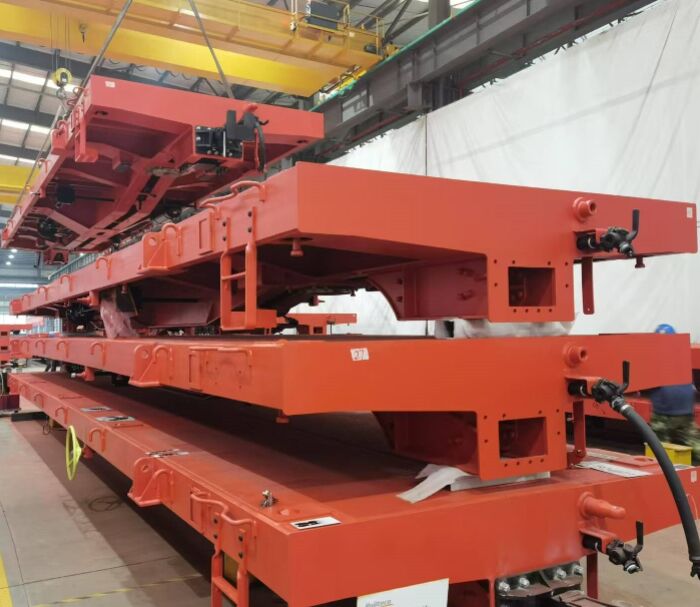

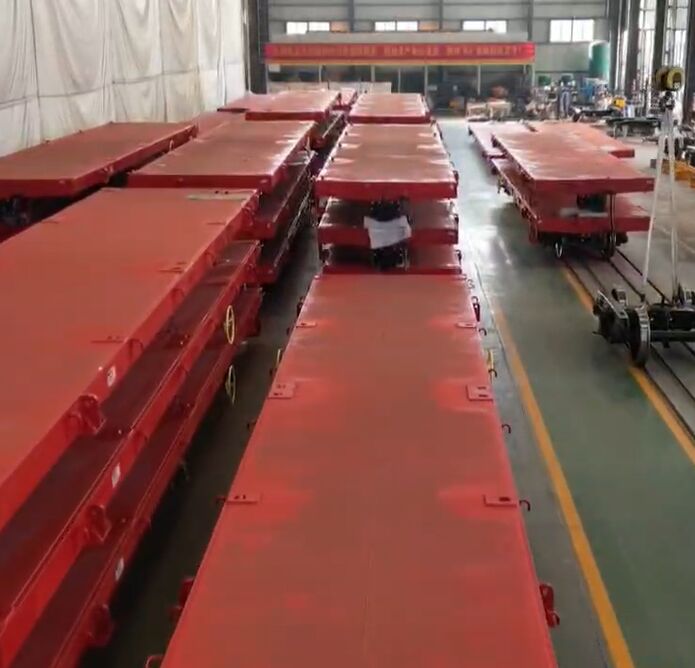

Flat Wagon Reference Photos
