Home > Products > Side Dump Wagon >

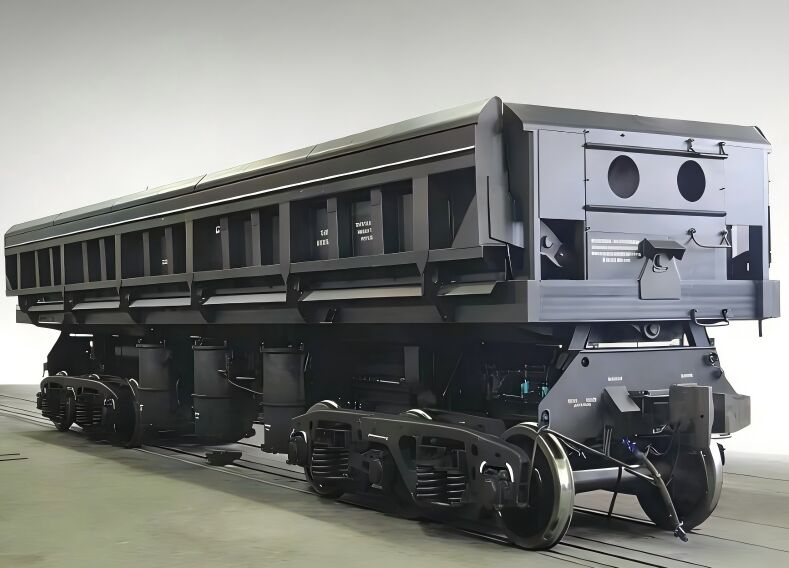

Railway Side Dump Wagon 30m3 100km/H Q450NQR1 Material

Railway Side Dump Wagon

Side Dump Wagon 30m3

100km/h side dump silage wagon

Place of Origin:

China

Brand Name:

Railteco

Certification:

ISO

Model Number:

Side Dump Wagon

Request A Quote

Product Details

Tare Weight:

≤36t

Payload:

54t

Capacity:

30m³

Axle Load:

26.5t

Track Gauge:

1067mm

Maximum Operating Speed:

100km/h

Car Body Material:

Q450NQR1

AIr Brake System:

6540 Brake Valve

Highlight:

Railway Side Dump Wagon

Side Dump Wagon 30m3

100km/h side dump silage wagon

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

60000-80000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

RELATED PRODUCTS

Contact Now

Product Description

Railway Side Dump Wagons in Bulk Material Handling

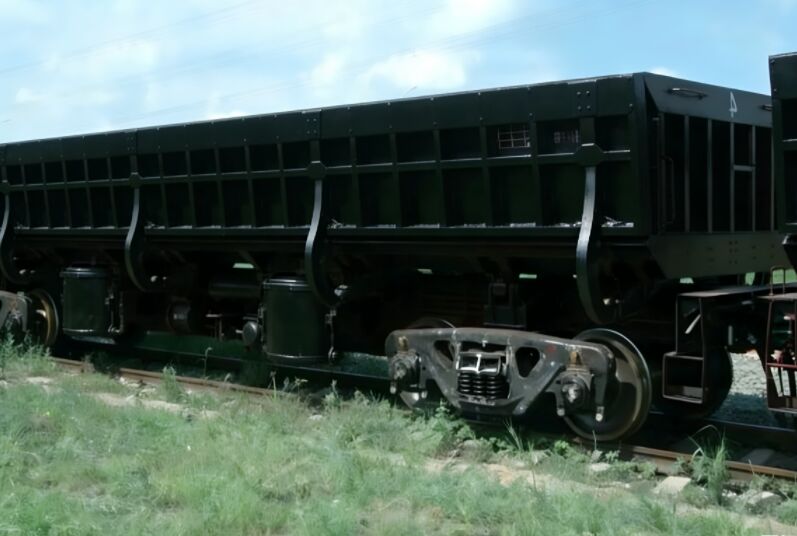

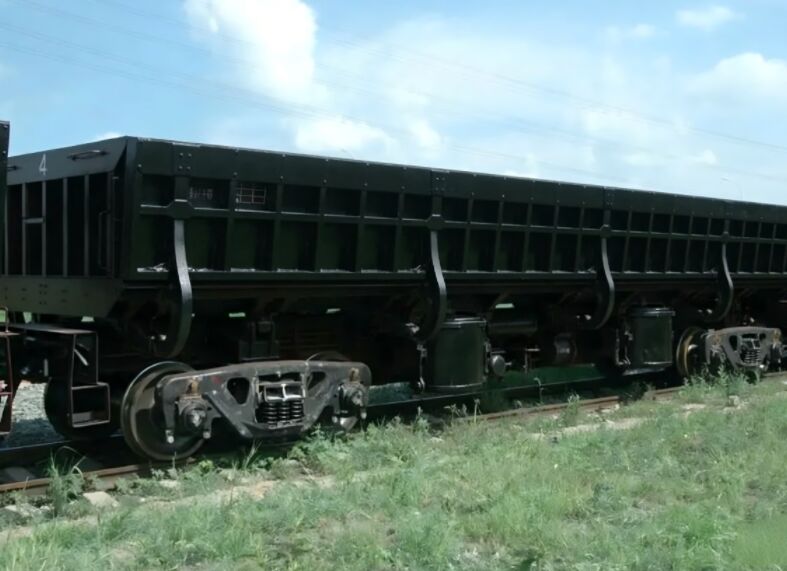

Railway Side Dump Wagons

A railway side dump wagon is a specialized type of freight railcar designed to transport bulk materials—such as ore, coal, and rock—and unload them quickly to the side of the tracks. Unlike hopper cars that discharge between the rails, these wagons can dump their entire load to the left or right, making them ideal for construction and mining operations.

Main Parameters

Loading Capacity	70T
Tare Weight	≤36T
Axle Load	26.5T
Max. Tipping Angle	45°
Volume	30m³
Design Speed	120km/h
Max. Running Speed	100km/h
Gauge	Can be customized
Bogie	Three-piece Type
Power of Dump	Compressed Air

Side Dumping Mechanism

The wagon's body tilts laterally (typically to a 45-degree angle) using pneumatic or hydraulic systems, allowing the load to slide out directly onto the ground beside the railway.
