Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage

Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage

livestock railway goods van

livestock railway goods carriage

steel railway goods van

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH46

CONTACT US
Request A Quote
Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage
Product Details
Tare Weight:
23.5 T
Gauge:
1000 Mm
Load Capacity:
33 T
Axle Load:
18.5 T
Min. Curve Radius:
88 M
Maximum Operating Speed:
75 Km/h
Length:
20000 Mm
Length Between Truck Pivot Centers:
13850 Mm
Floor Height(unloaded):
1104 Mm
Coupler Height(unloaded):
585mm
Highlight:

livestock railway goods van

,

livestock railway goods carriage

,

steel railway goods van

Payment & Shipping Terms
Minimum Order Quantity
1
Price
discussible
Packaging Details
Railteco Standard package
Delivery Time
depends on quantity
Payment Terms
T/T,L/C,D/P
Supply Ability
depends on quantity
RELATED PRODUCTS
Good price Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage online

Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage

Get Best Price
Good price 23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon online video

23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon

Get Best Price
Good price 1000mm Gauge Covered Goods Wagon Tanzania Steel Goods Train Wagon online video

1000mm Gauge Covered Goods Wagon Tanzania Steel Goods Train Wagon

Get Best Price
Good price 20 Tons Covered Goods Wagon Sliding Door Closed Railway Goods Wagon 3 Meters online

20 Tons Covered Goods Wagon Sliding Door Closed Railway Goods Wagon 3 Meters

Get Best Price
CONTACT US
Contact Now
Product Description

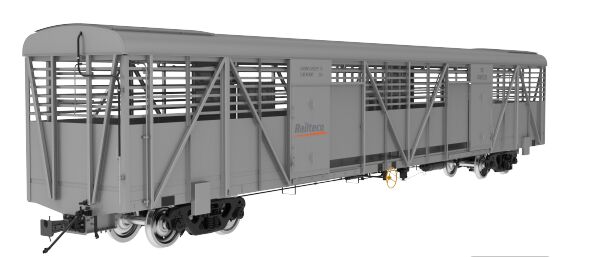

RTH46 1000mm Gauge Livestock Railway Wagon

Product Overview

This specialized livestock wagon is engineered for operation on 1000mm gauge railway systems in Tanzania, designed specifically for the safe transport of cattle, sheep, camels, and other livestock.

Key Components & Structure

The wagon features a comprehensive design with multiple integrated systems:

  • Car body with under frame, side walls, and end walls
  • Roof-mounted water tank for livestock hydration
  • Durable wooden flooring
  • Truss-structured side and end walls
  • Partition walls for animal separation
  • Side doors for loading/unloading access
  • Integrated food and water troughs
  • Bogie assembly for rail mobility
  • Air brake system for operational safety
  • Coupler buffer device for train connectivity

Technical Specifications

Component Specification
Railway Gauge 1000mm
Coupler System MCA-DA coupler buffer device (Yoke at "B" end, Hook at "A" end)
Braking System UIC air braking compliant with UIC 540 standard
Bogie Type Three-piece casting steel bogie
Primary Application Tanzania railway network

Reference Photos

Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage 0
