23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon

23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon

23.5t rail tank wagon

23.5t flatbed rail wagon

75km/h rail tank wagon

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH46 Livestock Wagon

CONTACT US
Request A Quote
23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon
23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon 23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon 23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon 23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon 23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon
Product Details
Tare Weight:
23.5t
Gauge:
1000mm
Load Capacity:
33t
Axle Load:
18.5t
Highlight:

23.5t rail tank wagon

,

23.5t flatbed rail wagon

,

75km/h rail tank wagon

Payment & Shipping Terms
Minimum Order Quantity
1unit
Price
60000-80000usd/unit
Packaging Details
Railteco Standard Export Packing
Delivery Time
3-6months
Payment Terms
L/C,T/T
Supply Ability
1000units/year
RELATED PRODUCTS
Good price Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage online

Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage

Get Best Price
Good price 23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon online video

23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon

Get Best Price
Good price 1000mm Gauge Covered Goods Wagon Tanzania Steel Goods Train Wagon online video

1000mm Gauge Covered Goods Wagon Tanzania Steel Goods Train Wagon

Get Best Price
Good price 20 Tons Covered Goods Wagon Sliding Door Closed Railway Goods Wagon 3 Meters online

20 Tons Covered Goods Wagon Sliding Door Closed Railway Goods Wagon 3 Meters

Get Best Price
CONTACT US
Contact Now
Product Description
RTH46 Cattle Wagon For 1000mm Gauge In Tanzania
Product Overview
Designed specifically for 1000mm gauge railways in Tanzania, this livestock wagon is engineered for the safe and efficient transportation of cattle, sheep, camels, and other livestock. The wagon features an MCA-DA coupler and draft gear assembly with yoke at the "B" end and coupler head at the "A" end, and incorporates the UIC 540 standard air braking system for optimal operational safety. Supported by a three-piece cast steel bogie, it delivers stable and dependable running performance.
Key Characteristics
  • Integrated robust car body, reliable bogie, air brake system, coupler and draft gear assembly
  • Dedicated water supply system and specialized food & water troughs
  • Car body structure includes underframe, side walls, end walls, roof, partition walls and side doors
  • Wooden floor construction for enhanced durability
  • Truss-structured side and end walls for superior structural strength
  • Roof-mounted water tank for comprehensive livestock care
Technical Specifications
Minimum Curve Radius 88m
Maximum Operating Speed 75km/h
Length 20000mm
Length Between Truck Pivot Centers 13850mm
Floor Height (Unloaded) 1104mm
Coupler Height (Unloaded) 585mm

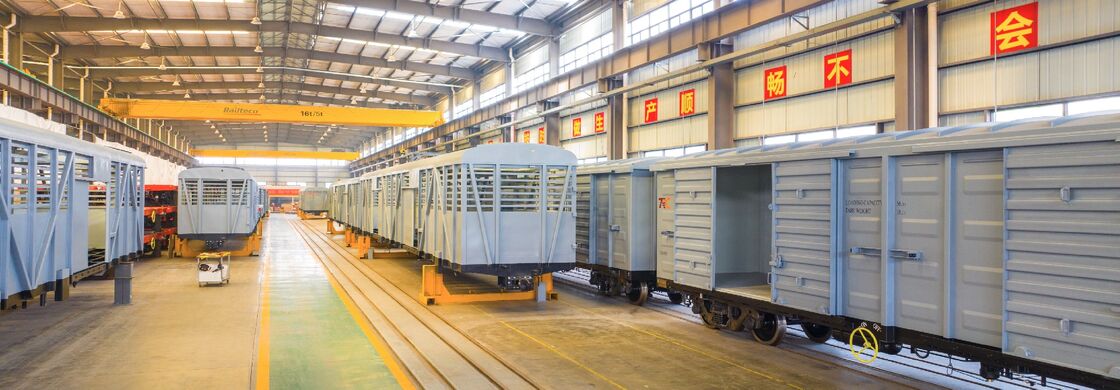

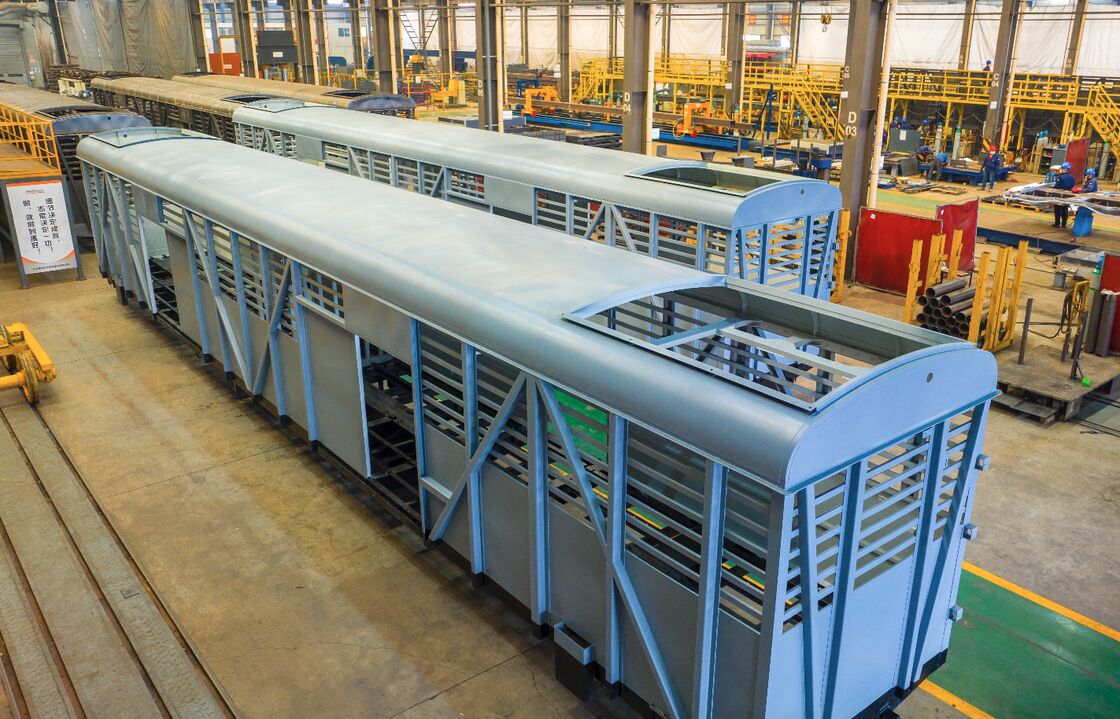

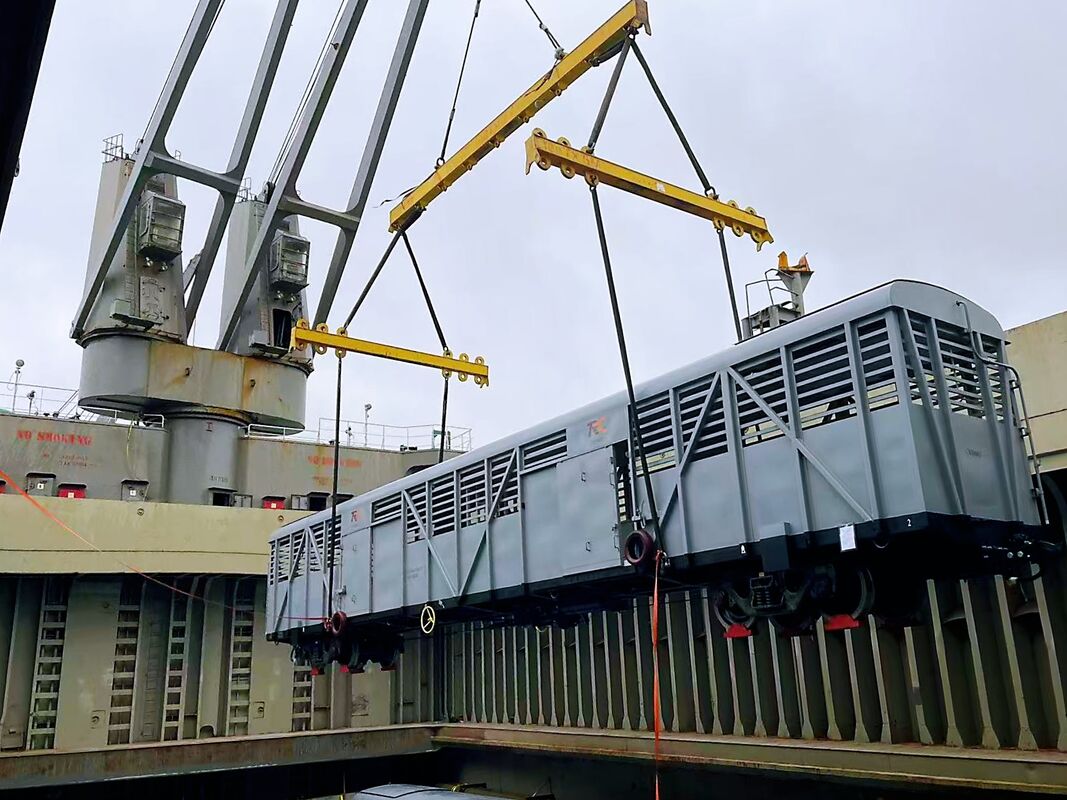

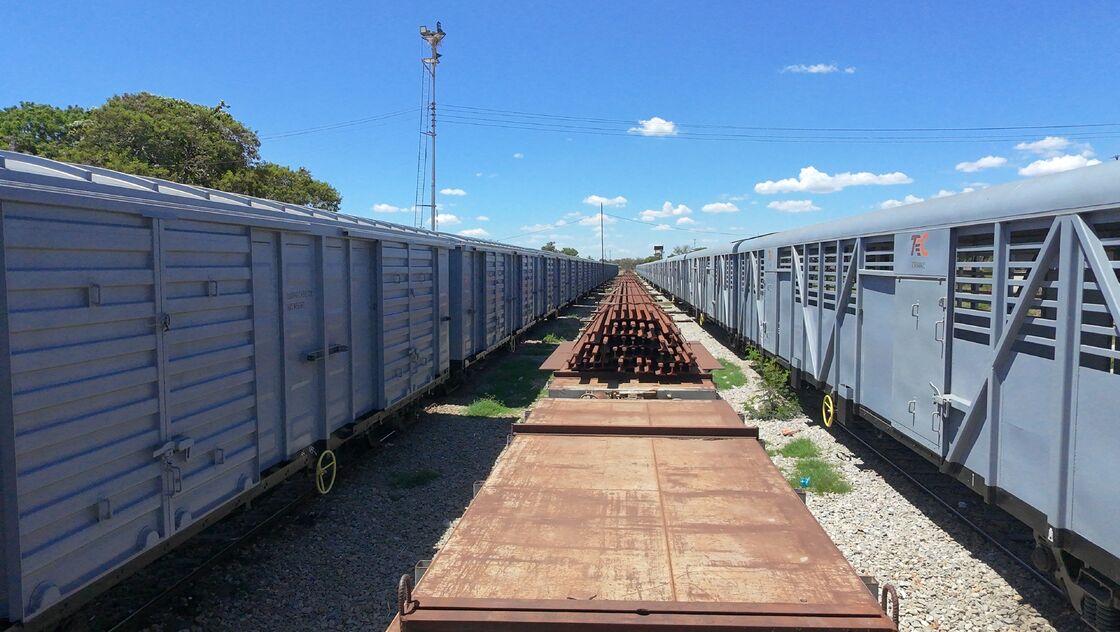

Reference Photos
23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon 0
