Home > Products > Covered Goods Wagon >

1000mm Covered Goods Wagon 18t 56.5t Railway Goods Wagon

56.5t railway goods wagon

1000mm railway wagon

1000mm railway goods wagon

Place of Origin:

China

Brand Name:

Railteco

Certification:

UIC540

Model Number:

Covered Wagon

Request A Quote

1000mm Covered Goods Wagon 18t 56.5t Railway Goods Wagon

Product Details

Tare Weight:

18t

Guage:

1000mm

Load Capacity:

56.5t

Axle Load:

18.5t

Highlight:

56.5t railway goods wagon

1000mm railway wagon

1000mm railway goods wagon

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

60000-80000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage

Get Best Price

video

23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon

Get Best Price

video

1000mm Gauge Covered Goods Wagon Tanzania Steel Goods Train Wagon

Get Best Price

20 Tons Covered Goods Wagon Sliding Door Closed Railway Goods Wagon 3 Meters

Get Best Price

Contact Now

Product Description

Production Discription

Covered Wagon Used On The 1000mm Gauge Railway In Tanzania

Covered Wagon Overview

This wagon is suitable for operation on a 1000mm gauge railway in Tanzania, and is mainly used for transporting goods avoiding sun, rain and snow, such as grain, food and daily industrial products.

Key Characteristics

The wagon is mainly composed of car body, bogie, air brake device, coupler buffer device, and so on.
The car body is mainly composed of under frame, side wall, end wall, roof, side door, etc.
The wagon is equipped with steel floor.
Adopt MCA-DA coupler buffer device. The “B" end of the wagon is the yoke, and the “A" end of the car is the hook.
The air braking system adopts UIC braking,which conforms to UIC 540 standard.

The bogie adopts three-piece casting steel bogie.

1000mm Covered Goods Wagon 18t 56.5t Railway Goods Wagon 0

Technical specification

Min.Curve radius	88m
Maximum Operating speed	75km/h
Length	13650mm
Length between truck pivot centers	8690mm
Floor height(unloaded)	1053mm
Coupler height(unloaded)	585mm

Primary application

This wagon is suitable for operation on a 1000mm gauge railway in Tanzania, and is mainly used for transporting goods avoiding sun, rain and snow, such as grain, food and daily industrial products.

Covered Wagon Reference Photos

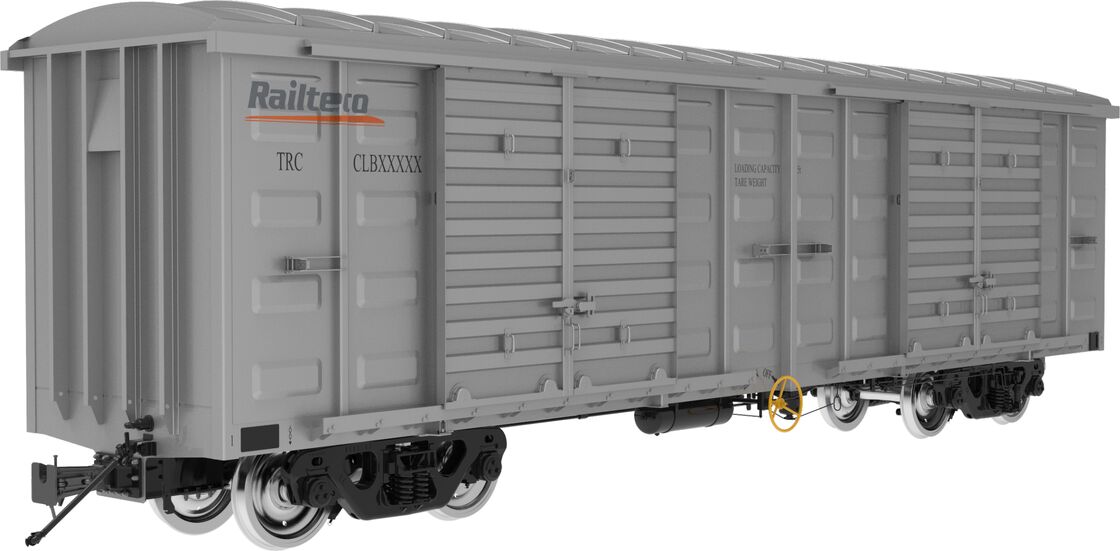

1000mm Covered Goods Wagon 18t 56.5t Railway Goods Wagon 1

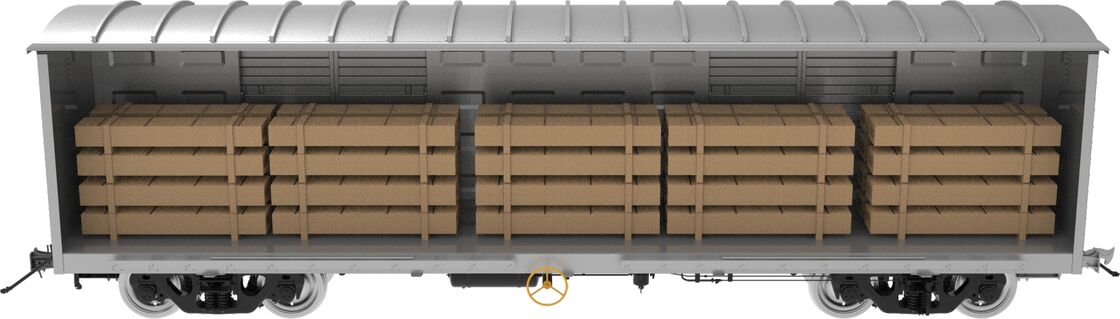

1000mm Covered Goods Wagon 18t 56.5t Railway Goods Wagon 2
