Home > Products > Covered Goods Wagon >

Heavy Load Railway Carriage Wagon Light Weight Mineral Wagon

heavy load railway carriage wagon

light weight mineral wagon

heavy load mineral wagon

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH191 Covered Wagon

Request A Quote

Heavy Load Railway Carriage Wagon Light Weight Mineral Wagon

Product Details

Product Name:

RTH191 Covered Wagon

Tare Weight:

15t

Application:

Railway Transport

Advantage:

Light Weight,Heavy Load，Long Service Life

Highlight:

heavy load railway carriage wagon

light weight mineral wagon

heavy load mineral wagon

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

60000-80000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

T/T,L/C

Supply Ability

1000units/year

Livestock Covered Goods Wagon Roof Mounted Casting Steel Railway Goods Carriage

Get Best Price

video

23.5t Top Covered Cattle Railroad 75km/H Wagon Rail Tank Wagon

Get Best Price

video

1000mm Gauge Covered Goods Wagon Tanzania Steel Goods Train Wagon

Get Best Price

20 Tons Covered Goods Wagon Sliding Door Closed Railway Goods Wagon 3 Meters

Get Best Price

Contact Now

Product Description

Railway 191 Covered Wagon - Light Weight, Heavy Load, Long Service Life

The 191 Covered Wagon is engineered for optimal performance with light weight construction, heavy load capacity, and extended service life.

Product Overview

This versatile wagon is designed for transporting goods that require protection from sun exposure, rain, and snow, as well as boxed and bagged cargo.

Key Characteristics

Lightweight construction with heavy load capacity and extended service life
Main material constructed from weather-resistant steel with strong corrosion resistance
Side doors can be rearranged according to customer usage requirements
Optional thermal insulation liners available based on customer specifications

Technical Specifications

Specification	Value
Gauge	1000mm
Load Capacity	33t
Axle Load	12t
Volume Capacity	64m³
Minimum Curve Radius	60m
Maximum Operating Speed	80km/h
Length	12323mm
Center Distance of Core Plate	7772mm
Maximum Width	2600mm
Maximum Height (Unloaded)	3330mm
Height from Track Surface to Coupler Center Line (Unloaded)	584mm

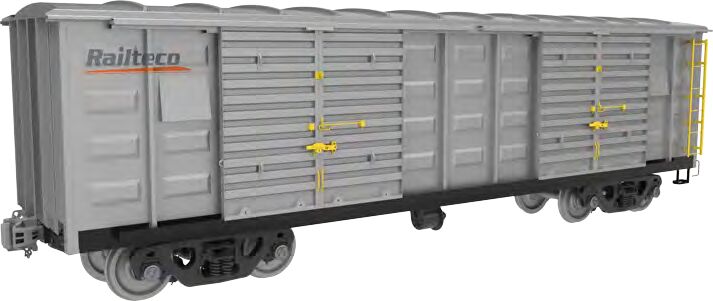

191 Covered Wagon Reference Photos
