RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

Railway Flat Wagon 80km/h

Movable Railway Flat Wagon

80km/h Crane Flat Wagon

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH56

CONTACT US
Request A Quote
RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon
Product Details
Tare Weight:
31 T
Gauge:
1600mm
Pay Load:
30 T
Axle Load:
18.5 T
Min. Curve Radius:
100 M
Maximum Operating Speed:
80 Km/h
Length:
14250 Mm
Length Between Truck Pivot Centers:
9300 Mm
Coupler Height(unloaded):
990 Mm
Highlight:

Railway Flat Wagon 80km/h

,

Movable Railway Flat Wagon

,

80km/h Crane Flat Wagon

Payment & Shipping Terms
Minimum Order Quantity
1
Price
depends on quantity
Packaging Details
Railteco Standard Package
Delivery Time
depends on quantity
Payment Terms
L/C,D/P,T/T
Supply Ability
depends on quantity
RELATED PRODUCTS
Good price Customizable 23t Goods Train Wagon Transport Container Wagon online

Customizable 23t Goods Train Wagon Transport Container Wagon

Get Best Price
Good price 120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon online

120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon

Get Best Price
Good price RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon online

RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

Get Best Price
Good price 1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons online

1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons

Get Best Price
CONTACT US
Contact Now
Product Description

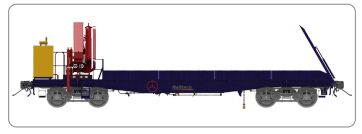

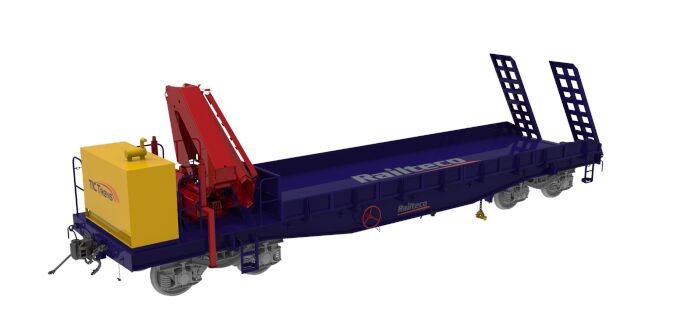

RTH56 1600mm Gauge 80km/h Crane Flat Wagon
Product Overview
The RTH56 Crane Flat Wagon is designed for lifting and transporting mechanical equipment, tools, and materials on fixed railway tracks. This specialized flat-bed freight car features an integrated crane and ramp system, operating without its own power source and requiring use with a tractor for mobility.
Key Specifications
Gauge 1600mm
Maximum Speed 80 km/h
Power Source External tractor required
Structural Components
  • All-steel welded construction for maximum durability
  • Under frame with robust structural integrity
  • Movable side walls for flexible loading configurations
  • Hydraulic tailgate system for efficient operations
  • Integrated crane for lifting capabilities
  • Power station for crane operations
  • Manual brake system for safety control
  • Rail gripper mechanism for secure positioning
  • Coupler buffer device for train connectivity

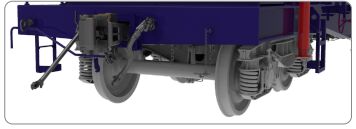

  • Bogie system for smooth rail movement
Primary Applications
Ideal for industrial and manufacturing facilities requiring efficient material handling and transportation of heavy equipment, machinery components, construction materials, and industrial tools across fixed railway networks.
