39.6 Tonnes Goods Wagon 14t Underground Ore Transport Railway Goods Van

goods wagon 14t

transport railway goods van

39.6 tonnes goods wagon

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH14

Request A Quote

39.6 Tonnes Goods Wagon 14t Underground Ore Transport Railway Goods Van

Product Details

Gauge:

1435mm

Volume Capacity:

20 M³

Tare Weight:

≤14t

Load Capacity:

39.6 T

Min. Curve Radius:

50 M

Fixed Wheelbase:

5530mm

Highlight:

goods wagon 14t

transport railway goods van

39.6 tonnes goods wagon

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Railteco Standard Export Package

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

120km/H Railway Special Wagon 12meters Specialized Vehicle Ladle Wagon

Get Best Price

180t Railway Special Wagon 12km/H Concrete Beam Carriage Vehicle

Get Best Price

1435mm Gauge Railway Special Wagon 70 Degree Construction Track Laying Vehicle

Get Best Price

20m3 Mine Wagon Volume Bottom Unloading 39.6t Railway Goods Carriage

Get Best Price

Contact Now

Product Description

High-Capacity RTH14 Mine Wagon for Efficient Underground Ore Transport

Product Overview

RTH14 Mine Wagon (20 m³) - A robust and highly efficient bottom-discharge wagon engineered for optimal productivity in underground mining operations. Designed to transport bulk ore smoothly through mine roadways, the RTH14 combines high-capacity design with rapid, gravity-assisted unloading for minimal downtime and maximum workflow efficiency.

Key Features & Benefits

Innovative bottom-discharge mechanism for swift, clean unloading
Gravity-assisted system with integrated unloading curved rails
Complete payload discharge without complex machinery
Exceptional agility with 50-meter minimum curve radius
Optimized payload-to-weight ratio for maximum efficiency
Durable construction for demanding underground environments

Technical Specifications

Gauge	1435mm
Volumetric Capacity	20 m³
Load Capacity	39.6 tonnes
Tare Weight	≤ 14 tonnes
Fixed Wheelbase	5530 mm
Maximum Length	6086 mm
Width	2650 mm
Unloaded Height	2430 mm
Minimum Curve Radius	50 meters

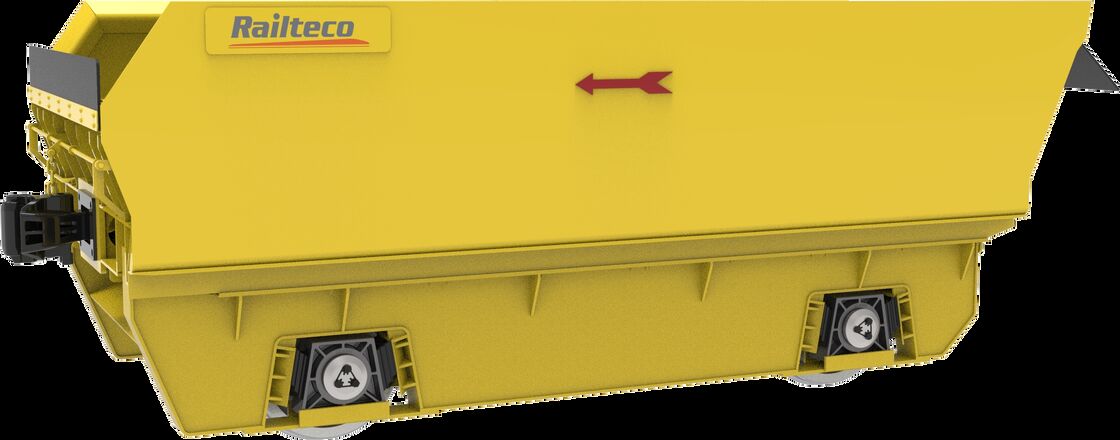

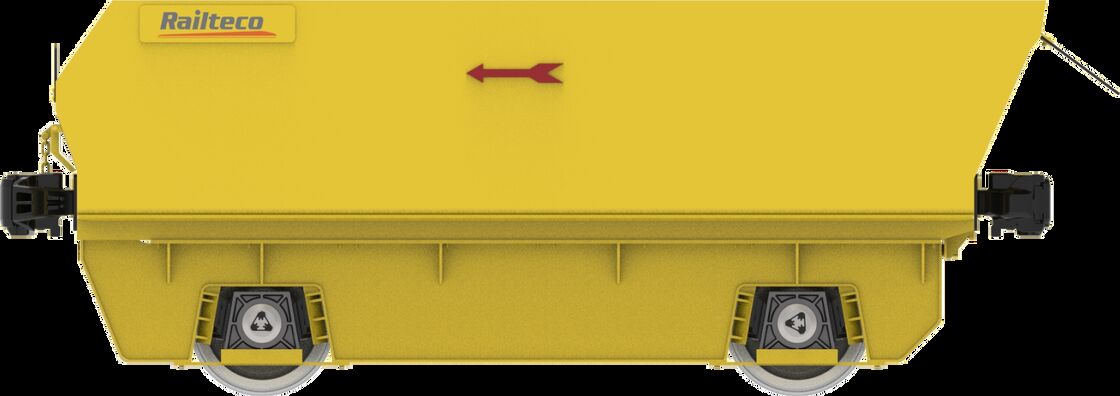

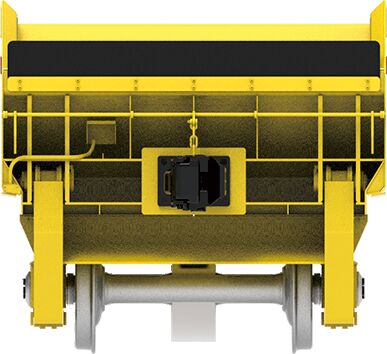

Reference Photos

39.6 Tonnes Goods Wagon 14t Underground Ore Transport Railway Goods Van 0

Discover how the RTH14 can optimize your ore haulage. Contact us today for detailed specifications and consulting.

Q: How does the RTH14 Mine Wagon achieve efficient unloading?
A: It features an innovative bottom-discharge mechanism with gravity-assisted system and integrated unloading curved rails, enabling swift, complete payload discharge without complex machinery.

Q: What is the payload capacity and tare weight of this wagon?
A: The RTH14 offers a 39.6-tonne load capacity with a tare weight of ≤14 tonnes, providing an optimized payload-to-weight ratio for maximum hauling efficiency in underground operations.

Q: Can this wagon navigate tight underground mine roadways?
A: Yes, it is designed with exceptional agility and can negotiate curves as tight as 50 meters, making it highly maneuverable through confined mine passages.

Q: What are the key dimensions and volumetric capacity?
A: The wagon features a 20 m³ volumetric capacity, with overall dimensions of 6086 mm in length, 2650 mm in width, and 2430 mm in unloaded height, designed specifically for 1435mm gauge tracks.
