RTH08 SGNSSS60 Railway Flat Wagon 100km/H 120km/H Container Wagon

Railway Flat Wagon 100km/h

Railway Flat Wagon 120km/h

120km/h Container Wagon

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH08

Request A Quote

Product Details

Lengths Over The Coupler:

19700mm

Track Gauge:

1435mm

Rmin(single Wagon):

75m

Bogie Type:

Y25Lsd1-K

Maximum Operating Speed(empty):

120km/h

Maximum Operating Speed(load):

100km/h

Kinematical Gauge:

G1-TSI

Brake Type:

GP-A-K

Coupler Type:

Screw Coupler

Highlight:

Railway Flat Wagon 100km/h

Railway Flat Wagon 120km/h

120km/h Container Wagon

Payment & Shipping Terms

Minimum Order Quantity

Price

Discussable

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6 months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

Customizable 23t Goods Train Wagon Transport Container Wagon

Get Best Price

120kmh Container Wagon 1435 Intermodal Transport Flat Freight Train Wagon

Get Best Price

RTH56 1600mm Railway Flat Wagon 80km/H Crane Flat Wagon

Get Best Price

1000mm Gauge 16ton Railway Flat Wagon Transportation Freight Wagons

Get Best Price

Contact Now

Product Description

RTH08 SGNSSS60' CONTAINER WAGON

Product Overview

The RTH08 SGNSSS60' container wagon is engineered for transporting containers and swap bodies of various lengths (20', 30', 40') classified in accordance with UIC592 standards. The wagon design complies with TSI, EN, and UIC regulatory requirements.

Maximum operational speed: 120 km/h

Compatible Container Types

Container Series	Compatible Types
Series 1 Freight Containers	1CX, 1C, 1CC, 1BX, 1B, 1BB, 1AX, 1A, 1AA
Symmetrical Swap Bodies	(20), (21), 22, 23, 24, (26), (29), (30), (31), 40, 42, (44), (45)
Asymmetrical Swap Bodies	NA+(81), 82, (84), (85), (86)(1); (60)(2)(3)

Technical Sepcifications

Tare weight	≤20t
Payload	70t(3 TEU)
Loading Height	1155mm
Axle load	≤22.5t
Track Gauge	1435mm

Loading Specifications

All loading possibilities are in accordance with the designated loading diagram for proper cargo distribution and secure transport.

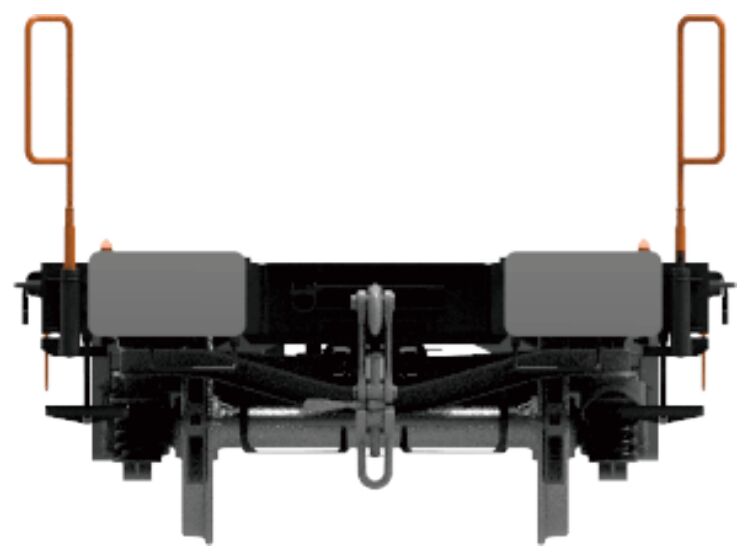

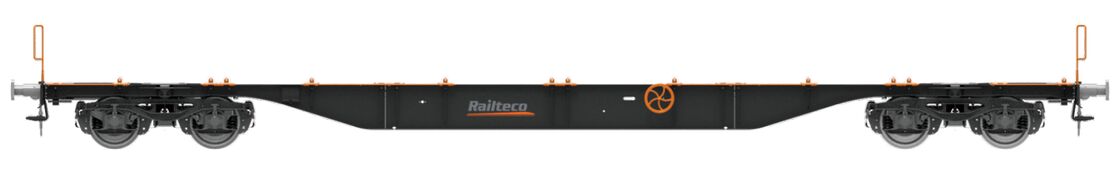

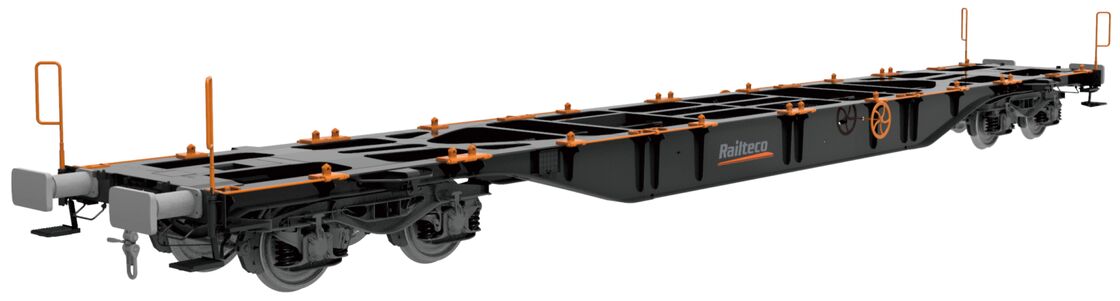

Reference Photos
