Home > Products > Railway Passenger Car >

1000mm Gauge Passanger Coach 80km/H 10t Luggage Brake Van

1000mm Gauge Passanger Coach

Gauge Passanger Coach 80km/h

10t Luggage Brake Van

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTK22

Request A Quote

1000mm Gauge Passanger Coach 80km/H 10t Luggage Brake Van

Product Details

Gauge:

1000 Mm

Axle Load:

10 T

Tare Weight:

25 T

Maximum Operating Speed:

80 Km/h

Min. Curve Radius:

109 Mm

Length:

18759 Mm

Floor Height(unloaded):

965 Mm

Coupler Height(unloaded):

585 Mm

Highlight:

1000mm Gauge Passanger Coach

Gauge Passanger Coach 80km/h

10t Luggage Brake Van

Payment & Shipping Terms

Minimum Order Quantity

Price

discussible

Packaging Details

Railteco Standard Package

Delivery Time

depends on quantity

Payment Terms

L/C,D/P,T/T

Supply Ability

depends on quantity

Passenger Sleep Railway Passenger Car AAR Passenger Information Train Coach

Get Best Price

Ergonomic SeatsRailway Passenger Car 160km/H - 250km/H Passenger Rail

Get Best Price

Sleeper Seating Railway Passenger Car 3.5 Meters - 4.2 Meters Railway Passenger Train

Get Best Price

video

18400mm Air Conditioned 160km/H Railway Passangeer Coach

Get Best Price

Contact Now

Product Description

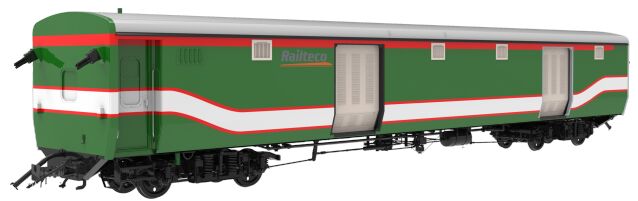

RTK22 1000mm Gauge Passenger Coach Luggage Brake Van

Product Overview

This luggage van is designed for operation on 1000mm gauge railways in Bangladesh, primarily used for transporting ordinary baggage. The vehicle features both an escort room for baggage train attendants' work and rest, and a passenger compartment.

Key Components

Car body structure
Coupler & draft gear system
Braking system
Electrical devices
Bogie assembly

Car Body Construction

The car body is an all-steel welded overall load-bearing structure consisting of:

Underframe
Side walls and end walls
Roof structure
Partition walls
Sliding doors
Luggage racks
Ventilators
Thermal insulation materials
Vehicle interior decoration

Technical Specifications

Component	Specification
Coupler System	MCA-PH coupler buffer device
Car End Configuration	A end: HOOK, B end: YOKE
Braking System	Dual pipe braking (vacuum and air braking)
Air Braking Standard	Knorr braking system conforming to UIC 540 standard
Bogie Type	Bombardier MD52-M type bogie

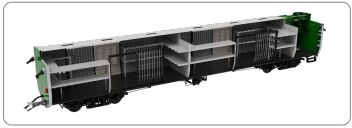

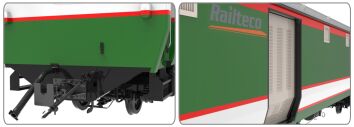

Reference photos
