RTHZ31 Bogie To Be Used On The Railway Gauge Of 1435mm

RTH31 railway bogie 1435mm gauge

railway flat wagon bogie

1435mm gauge railway wagon parts

Place of Origin:

China

Brand Name:

Railteco

Certification:

AAR

Model Number:

RTHZ31 Bogie

Request A Quote

Product Details

Material:

Steel

Running Speed(Max):

70km/h

Diameter Of Wheels:

Ф1000mm

Manufacture:

Timken,SKF Or FAG.

Highlight:

RTH31 railway bogie 1435mm gauge

railway flat wagon bogie

1435mm gauge railway wagon parts

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

13000-20000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

RTHZ56 Bogie Structural Design And Key Component Configuration

Get Best Price

RTHZ29 Bogie Is Mainly Constructed With A Welded Frame Structure

Get Best Price

RTHZ15 Bogie Is Mainly Applied To Railway Engineering Vehicles Used For Rail Transportation

Get Best Price

The RTHZ56 Bogie Adopts A Welded Frame Structure

Get Best Price

Contact Now

Product Description

RTHZ31 Bogie To Be Used On The Railway Gauge Of 1435mm

Product Overview

This kind of bogie is available to be used on the railway gauge of 1435mm. It is applied for new-making and servicing wagons. The axle load is 30t and the operating speed (Max) is 70km/h. The arrangement shall permit for ready accessibility for maintenance. This kind of bogie falls into categories of casting steel three-piece bogie. It is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, variable friction wedge type damping device, roller bearing, and side bearing etc.

Key Characteristics

Axle shall be in accordance with AAR M-101.
Wheel shall be in accordance with AAR M-107/M-208 ,the diameter of wheels is 1000mm.
The press-mounted of wheels and axle is according to AAR standard.
Use Class F 6 1/2ʺ*12ʺ tapered roller bearings in accordance with AAR M-934, manufacturer is Timken,SKF or FAG

Technical Specifications

Gauge	1435mm
Axle Load	27.5t 30t
Tera weight	5.2t
Wheel base	1800mm

Reference Photos

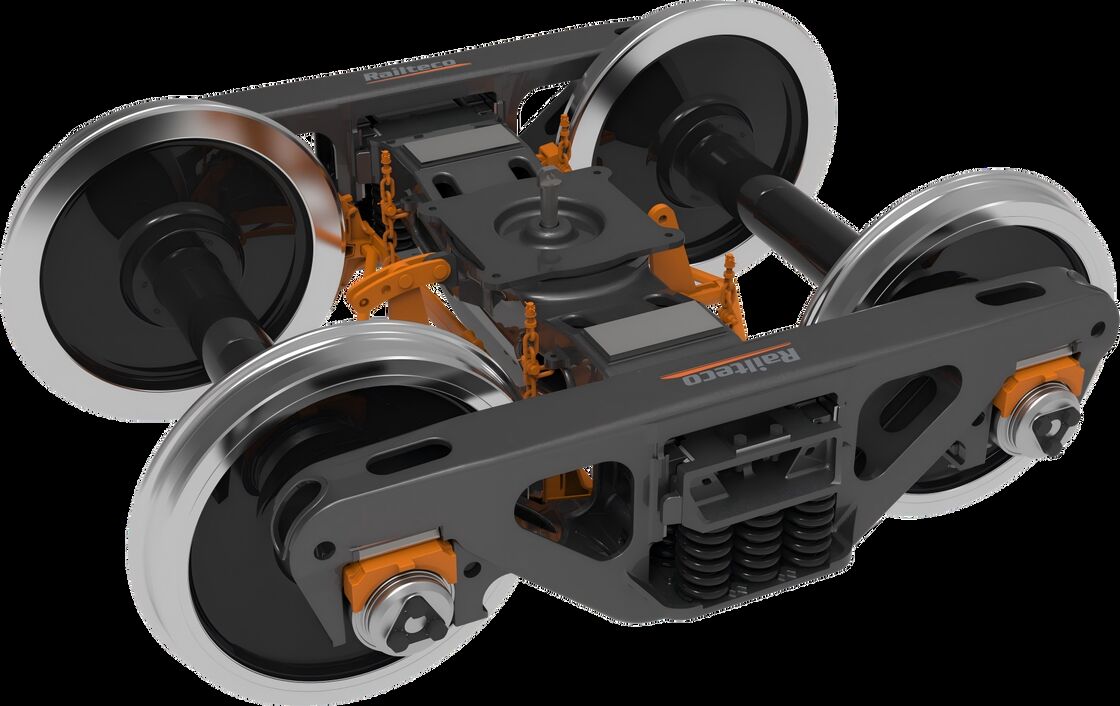

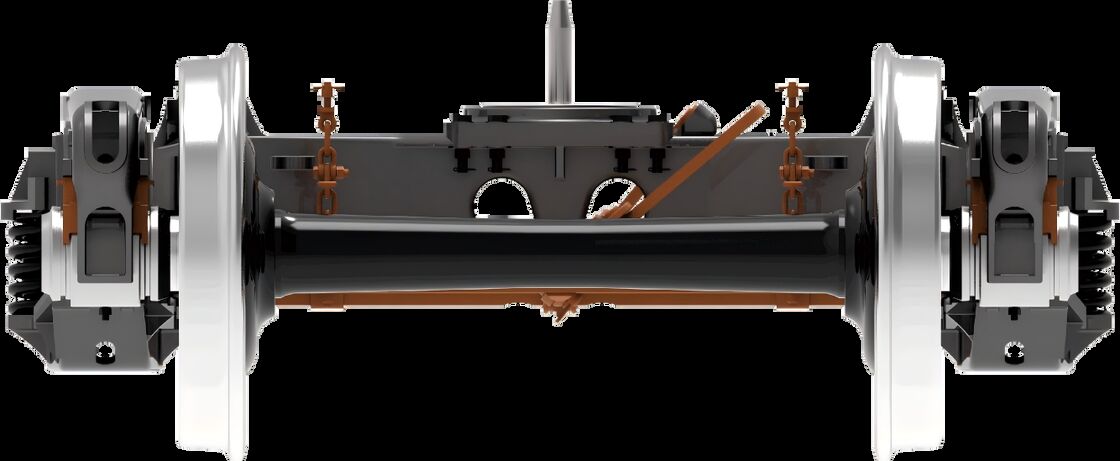

RTHZ31 Bogie To Be Used On The Railway Gauge Of 1435mm 0
