The Meter Gauge Stainless Steel Luggage Van Power Car

The Meter Gauge Stainless Steel Luggage Van Power Car

stainless steel railway power car

meter gauge luggage van

railway power car with gauge

Place of Origin:

China

Brand Name:

Railteco

Model Number:

The Meter Gauge Stainless Steel Luggage Van Power Car

CONTACT US
Request A Quote
The Meter Gauge Stainless Steel Luggage Van Power Car The Meter Gauge Stainless Steel Luggage Van Power Car The Meter Gauge Stainless Steel Luggage Van Power Car
Product Details
Width:
3 Meters
Weight:
120 Tons
Productname:
Railway Power Car
Powertype:
Diesel/Electric
Gauge:
1435 Mm
Height:
4.2 Meters
Highlight:

stainless steel railway power car

,

meter gauge luggage van

,

railway power car with gauge

Payment & Shipping Terms
Minimum Order Quantity
1unit
Price
300000-600000usd/unit
Packaging Details
Railteco Standard Export Packing
Delivery Time
3-6months
Payment Terms
L/C,T/T
Supply Ability
1000unit/year
RELATED PRODUCTS
Good price RTK23 Power Car 1000mm Gauge 10t Axle Load 80km/h Speed online

RTK23 Power Car 1000mm Gauge 10t Axle Load 80km/h Speed

Get Best Price
Good price 80km/h RTK23 Power Car with 10t Axle Load & 109m Radius online

80km/h RTK23 Power Car with 10t Axle Load & 109m Radius

Get Best Price
Good price The Meter Gauge Stainless Steel Luggage Van Power Car online

The Meter Gauge Stainless Steel Luggage Van Power Car

Get Best Price
CONTACT US
Contact Now
Product Description
The Meter Gauge Stainless Steel Luggage Van Power Car
Product Overview
The power car is mainly composed of car body, coupler & draft gear, braking system, windshield and apron, power generation device, electrical device, bogie, etc.
The car body is an all-steel welded overall load-bearing structure, mainly composed of underframe, side walls, end walls, roof, partition walls, boarding doors, sliding doors, windshield doors, wide doors, windows, luggage racks, ventilators, thermal insulation materials, vehicle interior decoration, and water supply devices.
Key Characteristics
  • The rubber windshield complies with TB/T 3094, and the apron complies with UIC standards.
  • Adopt MCA-PH coupler buffer device. The A end of the car is the HOOK, and the B end of the car is the YOKE.
  • The braking system adopts dual pipe braking, with one pipe for vacuum braking and the other for air braking.
  • The air braking system adopts Knorr braking, which conforms to UIC 540 standard.
  • The power generation device mainly consists of a diesel generator set, a cooling system, a fuel system, a diesel engine starting system, and a lubrication system.
  • The bogie adopts Bombardier MD52-M type bogie.
Technical Specifications
Specification Value
Gauge 1000mm
Axle load 10t
Tare weight 34t
Maximum Operating speed 100km/h
Min. Curve radius 109mm
Length 18759mm
Floor height (unloaded) 965mm
Coupler height (unloaded) 585mm

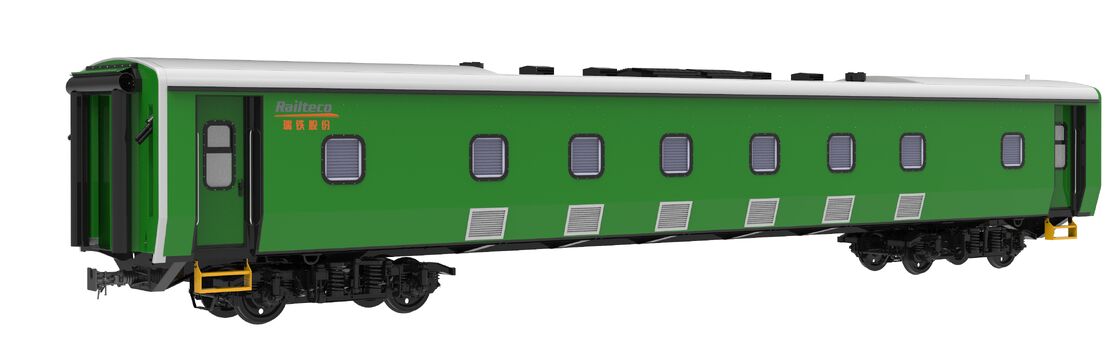

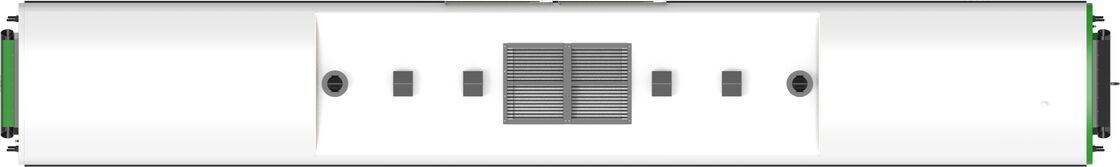

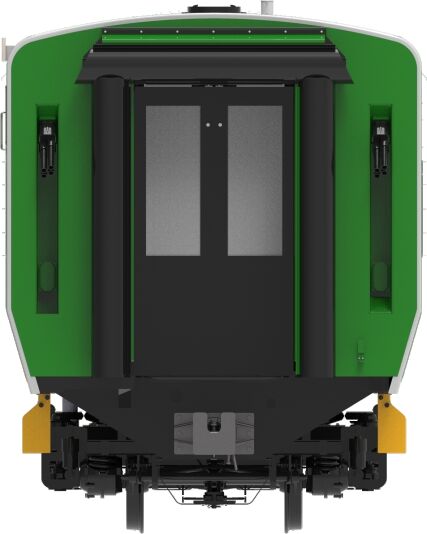

Power Car Reference Pictures
The Meter Gauge Stainless Steel Luggage Van Power Car 0 The Meter Gauge Stainless Steel Luggage Van Power Car 1 The Meter Gauge Stainless Steel Luggage Van Power Car 2
