80km/H Railway Tank Wagon 10530mm 43.6t Acid Tank Trailer

80km/h railway tank wagon

railway tank wagon 10530mm

80km/h acid tank wagon

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH11

Request A Quote

80km/H Railway Tank Wagon 10530mm 43.6t Acid Tank Trailer

Product Details

Tare Weight:

≤17.4t

Payload:

43.6t

Capacity:

27.5m³

Axle Load(bogie):

18t

Track Gauge:

As Per Client

Maximum Operating Speed:

80km/h

Length Over Coupler:

10530mm

Rmin(single Wagon):

70m

Brake Type:

UIC

Coupler Type:

Screw Coupler

Bogie Type:

Cast Type

Hydro Test Pressure:

0.459MPa

Safety Valve Working Pressure:

0.15MPa

Type Of Load:

Top

Type Of Unload:

Bottom(both Sides)

Highlight:

80km/h railway tank wagon

railway tank wagon 10530mm

80km/h acid tank wagon

Payment & Shipping Terms

Minimum Order Quantity

Price

Discussable

Delivery Time

7 months

316L Railway Tank Wagon 1435mm 14 Meters Tankwagons

Get Best Price

80km/H Railway Tank Wagon 10530mm 43.6t Acid Tank Trailer

Get Best Price

Contact Now

Product Description

RTH11 Phosphoric Acid Tank Wagon

Product Overview

Specialized tank wagon engineered for the safe and efficient transportation of phosphoric acid. Designed and manufactured to meet rigorous industrial standards for chemical transport applications.

Design Features

Top loading through manually operated hatch covers accessible from wagon platform
Bottom unloading system with dual-side operation capability
5-inch internal valve with T-branch pipe configuration
Dual ball valves manually operated from both wagon sides
Goods discharged simultaneously from two sides of wagon

Technical Specifications

Material Construction	Tank and fittings manufactured from 316L stainless steel
Compliance Standards	Meets EN and UIC regulatory requirements
Valve Configuration	One 5-inch internal valve, T-branch pipe, two ball valves
Operation Access	Manual operation from wagon top platform and both sides

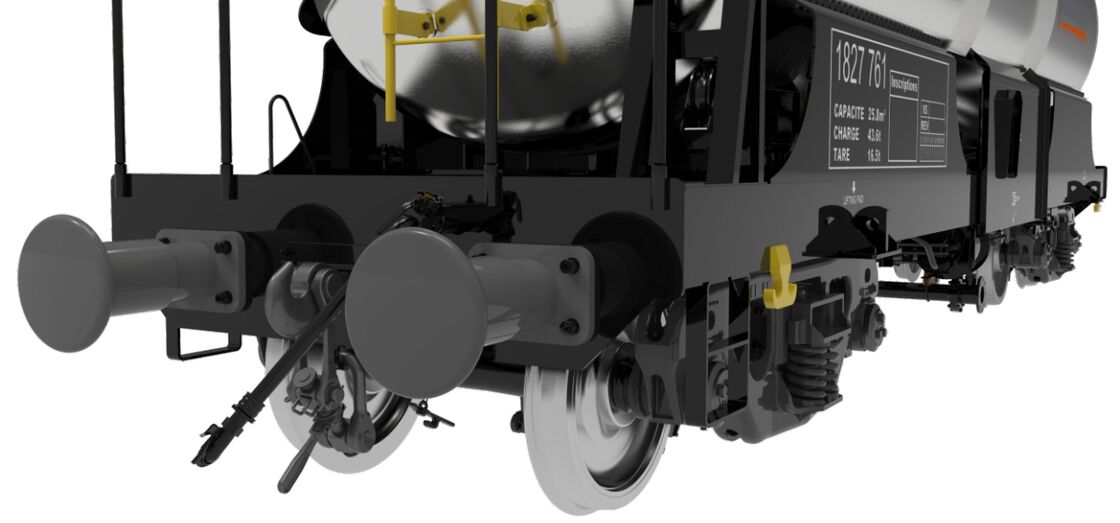

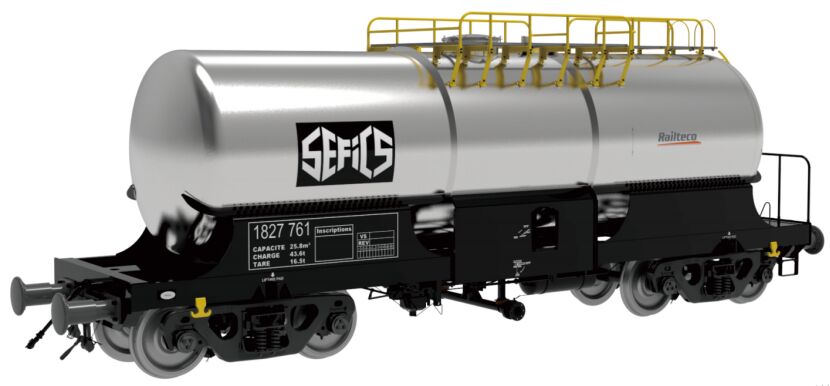

Reference Photos
