Yellow Roadway Mine Wagon Custom Color Transporting Ore The Goods Wagon

mine wagon custom

mine wagon custom color

transporting ore the goods wagon

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH14 MINE Wagon

Request A Quote

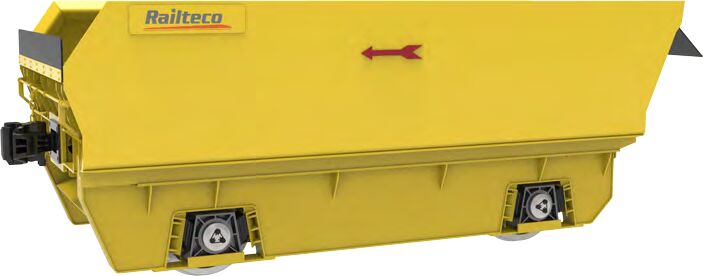

Yellow Roadway Mine Wagon Custom Color Transporting Ore The Goods Wagon

Product Details

Material:

Steel

Color:

Yellow/customer Request

Usage:

Transporting Ore

Advantage:

Bottom Unloading

Highlight:

mine wagon custom

mine wagon custom color

transporting ore the goods wagon

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

60000-80000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000unit/year

120km/H Railway Special Wagon 12meters Specialized Vehicle Ladle Wagon

Get Best Price

180t Railway Special Wagon 12km/H Concrete Beam Carriage Vehicle

Get Best Price

1435mm Gauge Railway Special Wagon 70 Degree Construction Track Laying Vehicle

Get Best Price

20m3 Mine Wagon Volume Bottom Unloading 39.6t Railway Goods Carriage

Get Best Price

Contact Now

Product Description

Mine Wagon For Transporting Ore Unloading From Bottom In The Mine Roadway

Product Overview

RTH14 MINE Wagon (20m³) is a specialized mining vehicle designed for efficient ore transportation in mine roadways. This bottom-unloading wagon utilizes gravity and unloading curved rails to complete unloading operations with the bottom downwards.

Key Characteristics

Bottom-unloading mine wagon design
Gravity-assisted unloading via curved tracks
Specifically engineered for ore transport in mine roadways

Technical Specifications

Gauge	1435mm
Volume Capacity	20m³
Tare Weight	≤14t
Load Capacity	39.6t
Minimum Curve Radius	50m
Maximum Length	6086mm
Maximum Width	2650mm
Maximum Height (Unloaded)	2430mm
Fixed Wheelbase	5530mm

RTH14 MINE Wagon Reference Photos
