1520mm 25.4t Open Top Wagon Transportation Open Top G Wagon

1520mm Open Top Wagon

25.4t Open Top Wagon

Transportation open top g wagon

Place of Origin:

China

Brand Name:

Railteco

Certification:

AAR

Model Number:

RTH62 BOTTOM-DISCHARGE OPEN TOP WAGON

Request A Quote

1520mm 25.4t Open Top Wagon Transportation Open Top G Wagon

Product Details

Tare Weight:

25.4t

Gauge:

1520mm

Load Capacity:

74t

Volume Capacity:

88m³

Highlight:

1520mm Open Top Wagon

25.4t Open Top Wagon

Transportation open top g wagon

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

60000-80000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

L/C,T/T

Supply Ability

1000units/year

450mpa Open Top Trains 77 Cubic Meters 13976mm Open Top G Wagon

Get Best Price

13980mm Open Top Railway Wagon Custom Open Top Trains 1520mm Gauge Bottom Discharge

Get Best Price

video

1435mm 23t Open Top Wagon Transportation Open Top G Wagons

Get Best Price

Air Braking Open Top Train 70m3 - 80m3 Sugar Cane Wagons For Sugar Industry

Get Best Price

Contact Now

Product Description

RTH62 Bottom-Discharge Open Top Wagon For Transportation

Product Overview

This wagon is engineered for 1520mm gauge railway operations, and is primarily intended for the transportation of construction machinery, mechanical equipment, coal, ore and other weather-insensitive cargoes.

Key Characteristics

It is mainly comprised of a car body, bogies, air brake system and coupler draft gear assembly.
The car body is constructed with a robust underframe, side walls, end walls and bottom discharge doors as its core structural components.
The wagon is fitted with a CA-3 automatic coupler that complies with the relevant GOST standards, paired with a matching coupler yoke and an MT-2 draft gear.
Its air brake system adopts a 6540 air control valve in full conformity with GOST specifications, and the bogie features a three-piece cast steel structure for enhanced durability and stability.

Technical Specifications

Specification	Value
Axle load	25t
Min. Curve radius	120m
Maximum Operating speed	120km/h
Length	13980mm
Length between truck pivot centers	8650mm
Coupler height (unloaded)	1060+20mm

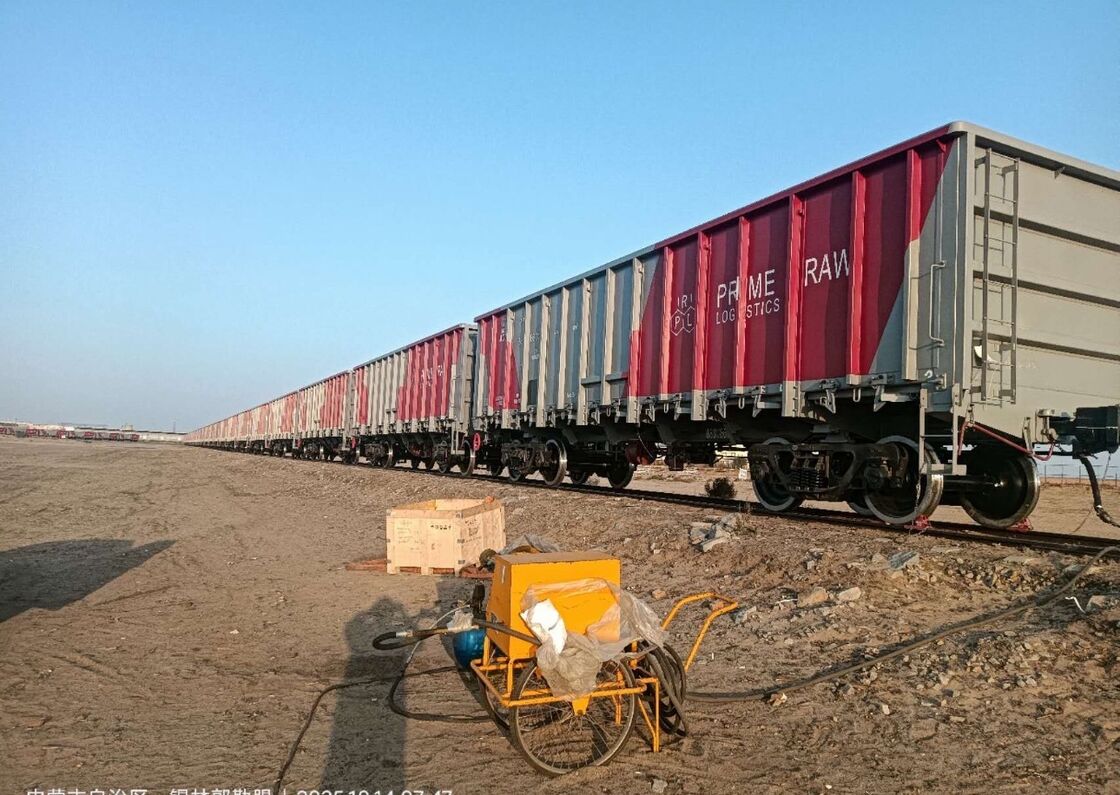

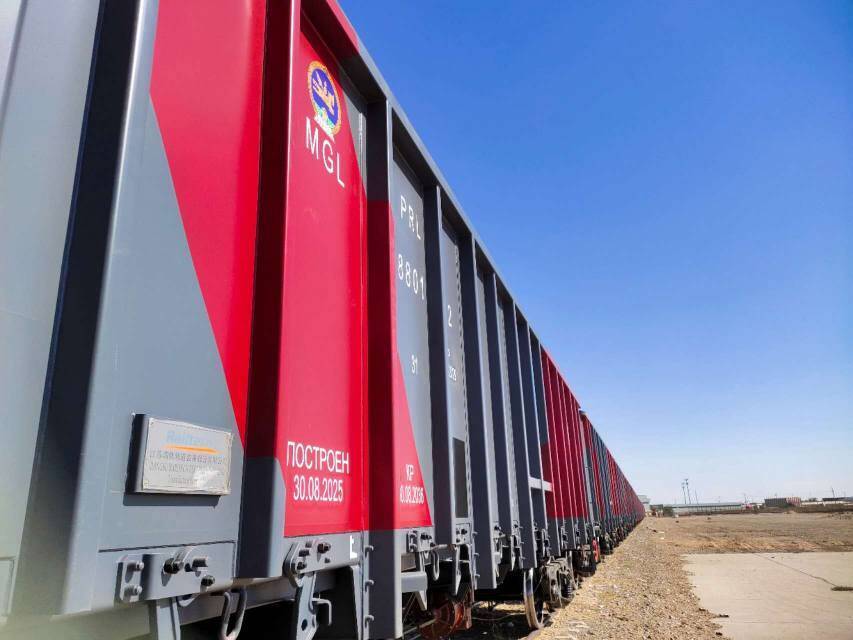

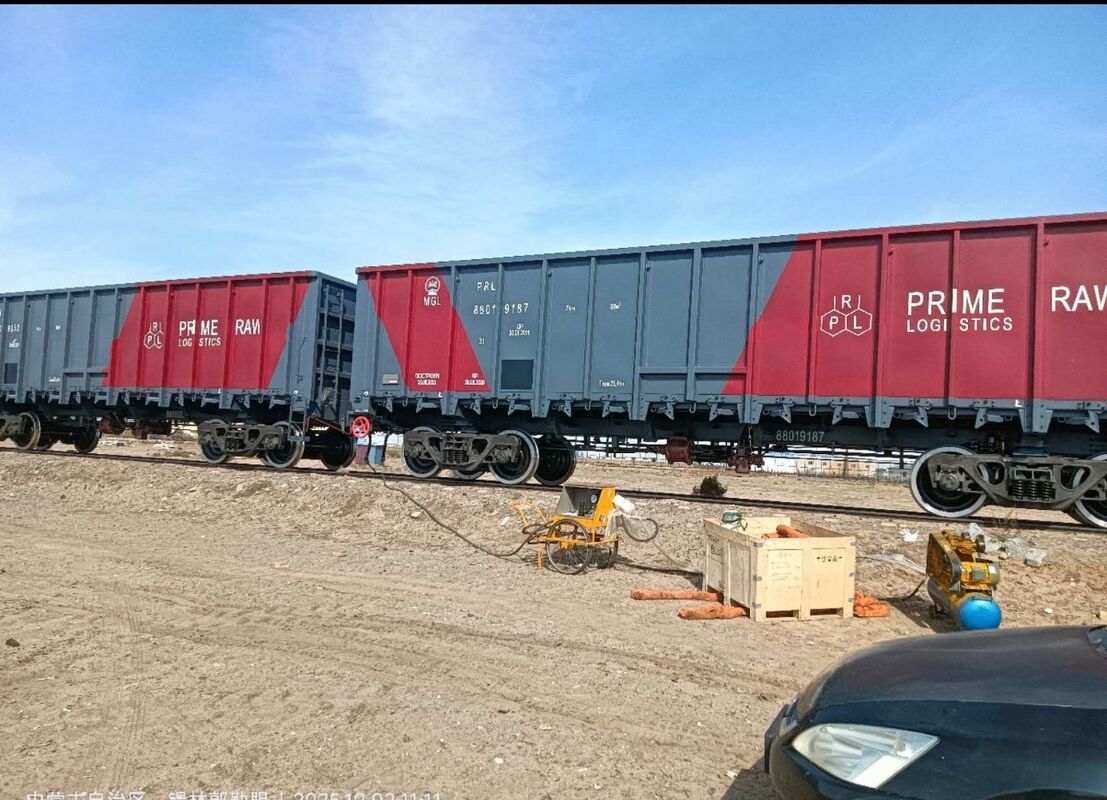

Reference Photos

Frequently Asked Questions

What types of cargo is this wagon suitable for transporting?

This wagon is exclusively engineered for operation on 1520mm gauge railways, complying with the technical specifications for this gauge track operation scenarios.

What are the main structural components of this wagon?

The wagon is mainly composed of a car body, bogies, air brake system and coupler draft gear assembly. Its car body further consists of an underframe, side walls, end walls and bottom discharge doors.

Does the wagon have a bottom discharge function?

Yes, the car body is designed with bottom discharge doors, which facilitates the efficient unloading of bulk cargoes such as coal and ore, improving the cargo handling efficiency.
