1435mm 23t Open Top Wagon Transportation Open Top G Wagons

1435mm 23t Open Top Wagon Transportation Open Top G Wagons

transportation open top g wagons

1435mm open top wagons

1435mm open top g wagons

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH18

CONTACT US
Request A Quote
1435mm 23t Open Top Wagon Transportation Open Top G Wagons
1435mm 23t Open Top Wagon Transportation Open Top G Wagons 1435mm 23t Open Top Wagon Transportation Open Top G Wagons 1435mm 23t Open Top Wagon Transportation Open Top G Wagons
Product Details
Tare Weight:
23t
Gauge:
1435mm
Load Capacity:
61t
Axle Load:
21t
Volume Capacity:
73.3m³
Height From Track Floor (unloaded Condition):
1082mm
Height From Track Surface To Coupler Center Line (unloaded Condition):
880mm
Highlight:

transportation open top g wagons

,

1435mm open top wagons

,

1435mm open top g wagons

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Discussable
Packaging Details
Railteco Standard Export Packing
Delivery Time
3-6months
Payment Terms
L/C,T/T
Supply Ability
1000units/year
RELATED PRODUCTS
Good price 450mpa Open Top Trains 77 Cubic Meters 13976mm Open Top G Wagon online

450mpa Open Top Trains 77 Cubic Meters 13976mm Open Top G Wagon

Get Best Price
Good price 13980mm Open Top Railway Wagon Custom Open Top Trains 1520mm Gauge Bottom Discharge online

13980mm Open Top Railway Wagon Custom Open Top Trains 1520mm Gauge Bottom Discharge

Get Best Price
Good price 1435mm 23t Open Top Wagon Transportation Open Top G Wagons online video

1435mm 23t Open Top Wagon Transportation Open Top G Wagons

Get Best Price
Good price Air Braking Open Top Train 70m3 - 80m3 Sugar Cane Wagons For Sugar Industry online

Air Braking Open Top Train 70m3 - 80m3 Sugar Cane Wagons For Sugar Industry

Get Best Price
CONTACT US
Contact Now
Product Description
RTH18 OPEN TOP WAGON
Application & Capabilities

The wagon is primarily designed for transporting coal, ore, building materials, machinery and equipment, steel, and timber. It supports both manual unloading operations and mechanical unloading using tippers.

Technical Specifications
  • Constructed with high-strength steel featuring a yield strength of 450 MPa
  • Engineered for lightweight design with heavy load capacity
  • Compatible with 10,000-ton Heavy-haul Train transportation requirements

Technical sepcifications

Tare weight 23t
Gauge 1435mm
Load Capacity 61t
Axle load 21t
Volume Capacity 73.3m³
Height from track floor(unloaded condition) 1082mm
Height from track surface to coupler center line(unloaded condition) 880mm

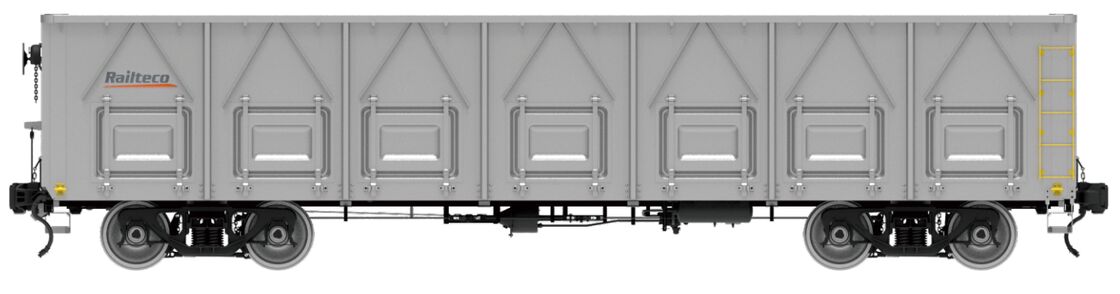

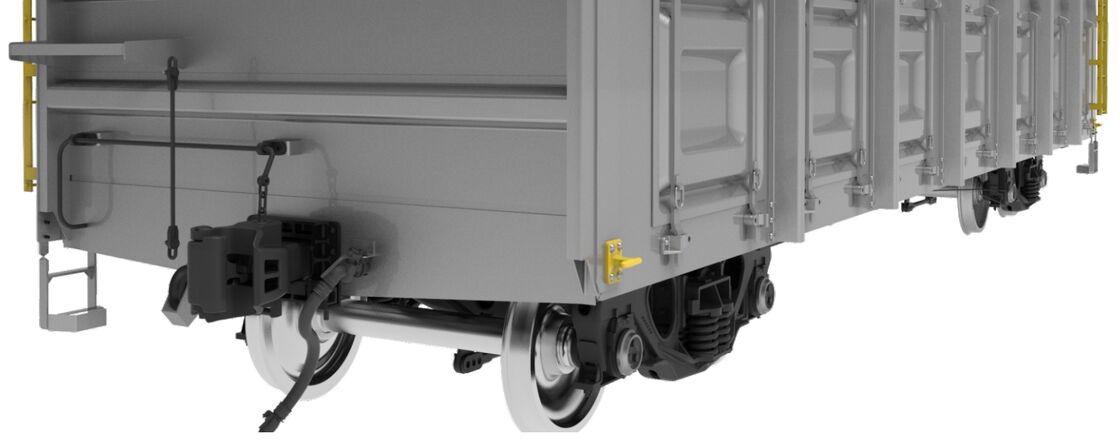

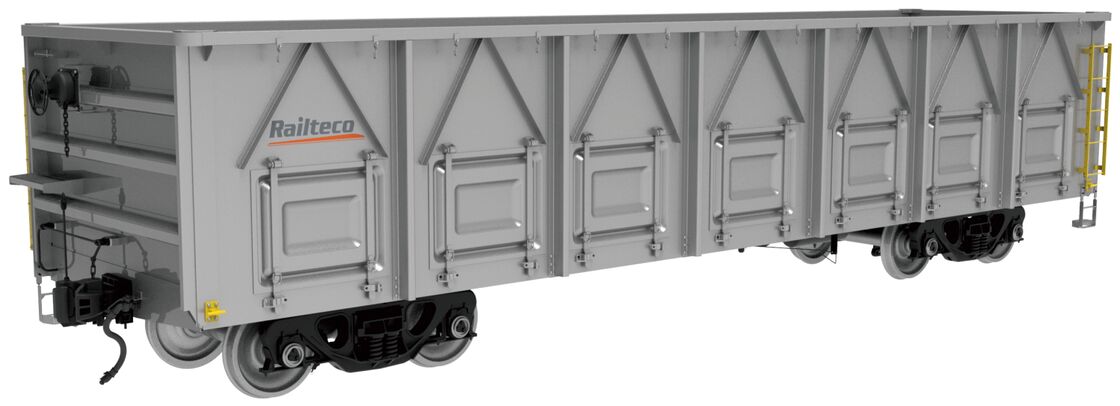

Reference Photos

1435mm 23t Open Top Wagon Transportation Open Top G Wagons 0
