13980mm Open Top Railway Wagon Custom Open Top Trains 1520mm Gauge Bottom Discharge

13980mm open top railway

custom open top trains

open top trains 1520mm

Place of Origin:

China

Brand Name:

Railteco

Model Number:

RTH62

Request A Quote

13980mm Open Top Railway Wagon Custom Open Top Trains 1520mm Gauge Bottom Discharge

Product Details

Tare Weight:

25.4 T

Gauge:

1520 Mm

Load Capacity:

74 T

Volume Capacity:

88 M^3

Axle Load:

25 T

Min. Curve Radius:

120 M

Maximum Operating Speed:

120 Km/h

Length:

13980 Mm

Length Between Truck Pivot Centers:

8650 Mm

Coupler Height(unloaded):

1060±20 Mm

Highlight:

13980mm open top railway

custom open top trains

open top trains 1520mm

Payment & Shipping Terms

Minimum Order Quantity

Price

discussible

Packaging Details

Railteco Standard package

Delivery Time

depends on quantity

Payment Terms

L/C,D/P,T/T

Supply Ability

depends on quantity

450mpa Open Top Trains 77 Cubic Meters 13976mm Open Top G Wagon

Get Best Price

13980mm Open Top Railway Wagon Custom Open Top Trains 1520mm Gauge Bottom Discharge

Get Best Price

video

1435mm 23t Open Top Wagon Transportation Open Top G Wagons

Get Best Price

Air Braking Open Top Train 70m3 - 80m3 Sugar Cane Wagons For Sugar Industry

Get Best Price

Contact Now

Product Description

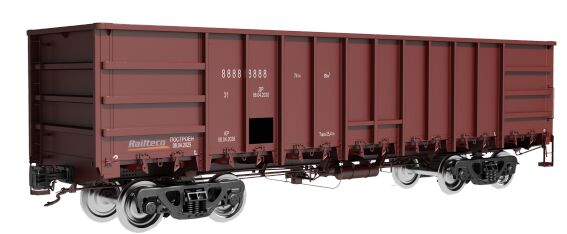

RTH62 1520mm Gauge Bottom-Discharge Open Top Railway Wagon

Product Overview

The RTH62 railway wagon is engineered for operation on 1520mm gauge railway systems, specifically designed for transporting construction machinery, mechanical equipment, coal, ore, and other materials that do not require protection from weather elements.

Structural Components

The wagon's primary structural system consists of:

Car body assembly
Bogie systems
Air brake equipment
Coupler buffer device

The car body structure is composed of an underframe, side walls, end walls, and bottom discharge doors.

Technical Specifications

Component	Specification
Coupler System	CA-3 automatic coupler compliant with GOST standards, with matching coupler yoke and MT-2 draft gear
Brake System	GOST-compliant 6540 air control valve

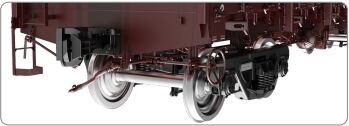

Bogie Design	Three-piece casting steel construction
Rail Gauge	1520mm
Discharge Type	Bottom-discharge open top design

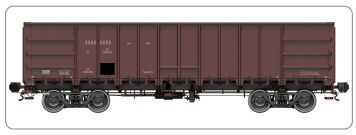

Reference Photos
