120km/H 88m3 Open Top Wagon 1520mm Gauge Railways Open Top Trains

120km/h Open Top Wagon

88m3 Open Top Wagon

1520mm open top trains

Place of Origin:

China

Brand Name:

Railteco

Certification:

GOST

Model Number:

Bottom-Discharge Open Top Wagon

Request A Quote

Product Details

Tare Weight:

25.4t

Gauge:

1520mm

Standard:

GOST

Usage:

Transportation

Highlight:

120km/h Open Top Wagon

88m3 Open Top Wagon

1520mm open top trains

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

60000-80000usd/unit

Packaging Details

Railteco Standard Export Packing

Delivery Time

3-6months

Payment Terms

,L/C,T/T

Supply Ability

1000unit/year

450mpa Open Top Trains 77 Cubic Meters 13976mm Open Top G Wagon

Get Best Price

13980mm Open Top Railway Wagon Custom Open Top Trains 1520mm Gauge Bottom Discharge

Get Best Price

video

1435mm 23t Open Top Wagon Transportation Open Top G Wagons

Get Best Price

Air Braking Open Top Train 70m3 - 80m3 Sugar Cane Wagons For Sugar Industry

Get Best Price

Contact Now

Product Description

Bottom-Discharge Open Top Wagon Operating On 1520mm Gauge Railways

This bottom-discharge open top wagon is engineered for operation on 1520mm gauge railway systems, specifically designed for transporting construction machinery, mechanical equipment, coal, ore, and other materials that do not require weather protection.

Key Characteristics

Comprises car body, bogies, air brake equipment, and coupler buffer device
Car body structure includes underframe, side wall, end wall, and bottom discharge door
Equipped with CA-3 automatic coupler compliant with GOST standards, including matching coupler yoke and MT-2 draft gear
Air brake system utilizes GOST-compliant 6540 air control valve
Features three-piece casting steel bogie design

Technical Specifications

Load Capacity	74t
Volume Capacity	88m³
Axle Load	25t
Minimum Curve Radius	120m
Maximum Operating Speed	120km/h
Length	13980mm
Length Between Truck Pivot Centers	8650mm
Coupler Height (Unloaded)	1060±20mm

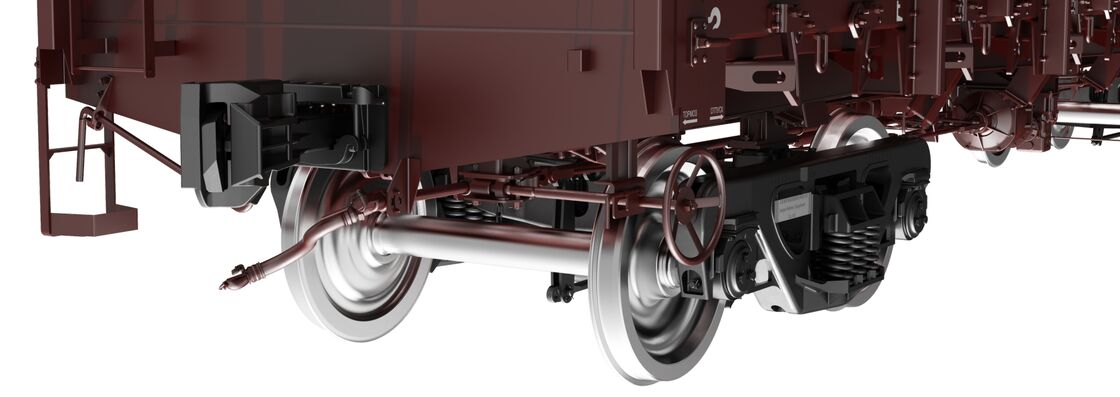

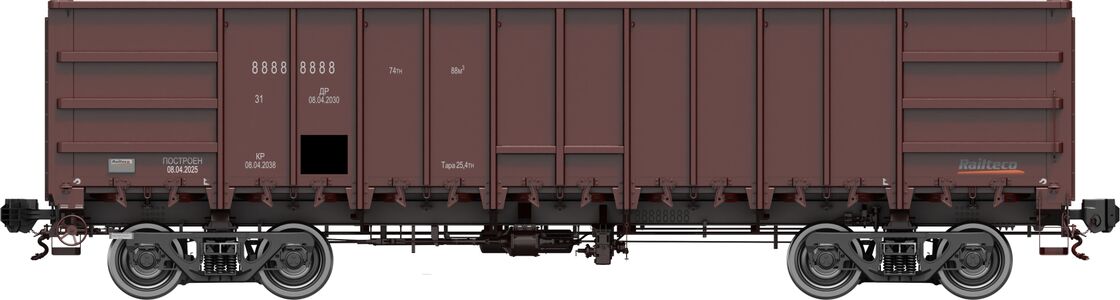

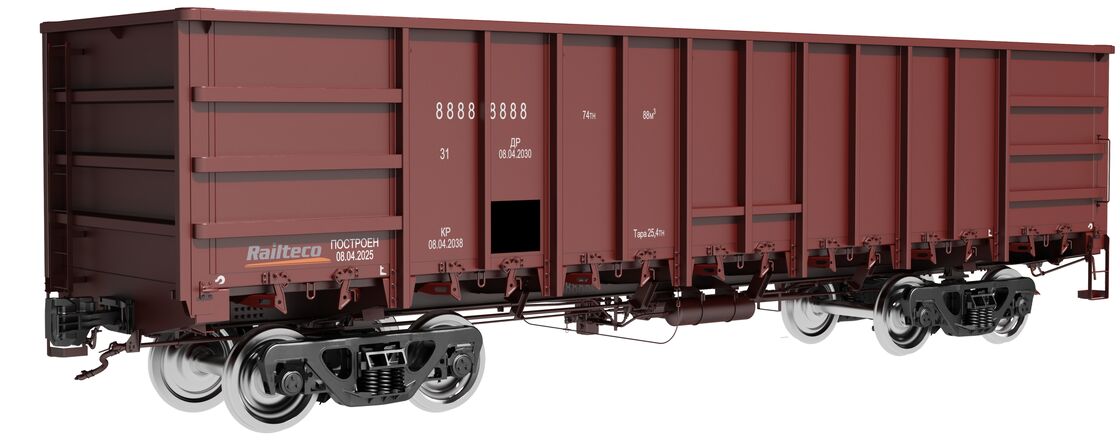

Reference Photos
